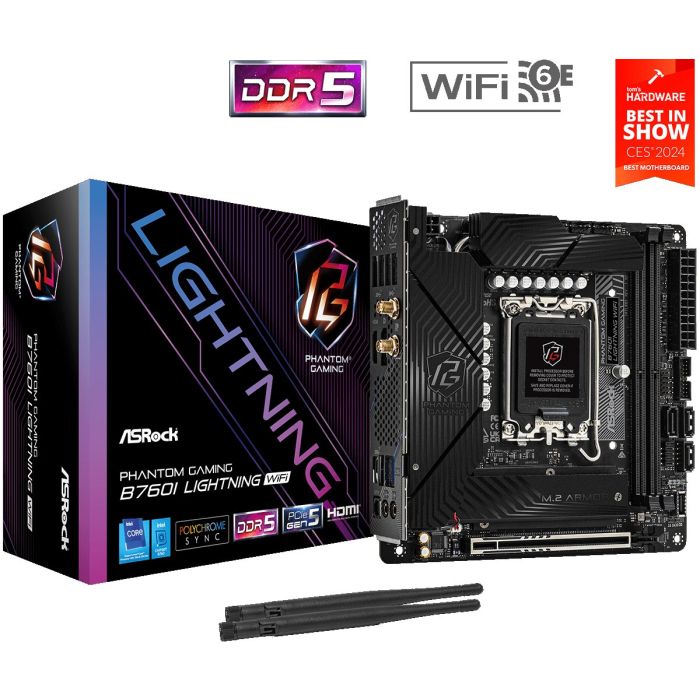

ASRock B760I Lightning WiFi

Lightning series stands as a symbol of both speed and power. The design employs linear and angular elements, evoking the imagery of lightning a spectacle of raw energy and breathtaking speed.

Specifications

• Supports Intel Volume Management Device (VMD)
• Supports NVMe SSD as boot disks
• RAID - Supports RAID 0, RAID 1 and RAID 5 for SATA storage devices
• USB Chipset:
• - 1 x USB 3.2 Gen2 Type-A (Rear)
• - 1 x USB 3.2 Gen2 Type-C (Rear)
• - 6 x USB 3.2 Gen1 Type-A (4 Rear, 2 Front)
• - 1 x USB 3.2 Gen1 Type-C (Front)
• - 1 x USB 2.0 (Front)
• All USB ports support ESD Protection
• Connector - 2 x Addressable LED Headers*
• - 1 x Thermistor Cable Header
• - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
• - 2 x Chassis Fan Connectors (4-pin)***
• - 1 x 24 pin ATX Power Connector
• - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
• - 1 x Front Panel Audio Connector
• - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports)
• - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
• - 1 x Front Panel Type C USB 3.2 Gen1 Header
• Support in total up to 5V/3A, 15W LED Strip
• CPU_FAN1/WP supports the fan power up to 2A (24W).
• CPU_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.
• CHA_FAN1 and CHA_FAN2 support the fan power up to 1A (12W).
• Rear Panel I/O - 2 x Antenna Ports
• - 1 x HDMI Port
• - 1 x DisplayPort 1.4
• - 1 x Optical SPDIF Out Port
• - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
• - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s)
• - 4 x USB 3.2 Gen1 Ports
• - 1 x RJ-45 LAN Port
• - 1 x Line Out Jack (Gold Audio Jack)
• - 1 x Microphone Input Jack (Gold Audio Jack)
• Software and UEFI **Software**
• - ASRock Motherboard Utility (Phantom Gaming Tuning)
• - ASRock Phantom Gaming LAN Software
• - ASRock Polychrome SYNC*
• UEFI**
• - ASRock EZ Mode
• - ASRock Full HD UEFI
• - ASRock My Favorites in UEFI
• - ASRock Auto Driver Installer
• - ASRock Instant Flash
• - ASRock Easy RAID Installer
• These utilities can be downloaded from ASRock Live Update & APP Shop.
• Accessories - 2 x SATA Data Cables
• - 2 x ASRock WiFi 2.4/5/6 GHz Antennas
• - 1 x Screw for M.2 Socket
• - 1 x Thermistor Cable
• Form Factor - Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm
• - 8 Layer PCB
• - 2oz Copper PCB
• OS - Microsoft Windows 10 64-bit / 11 64-bit
• Certifications - FCC, CE
• - ErP/EuP ready (ErP/EuP ready power supply is required)
