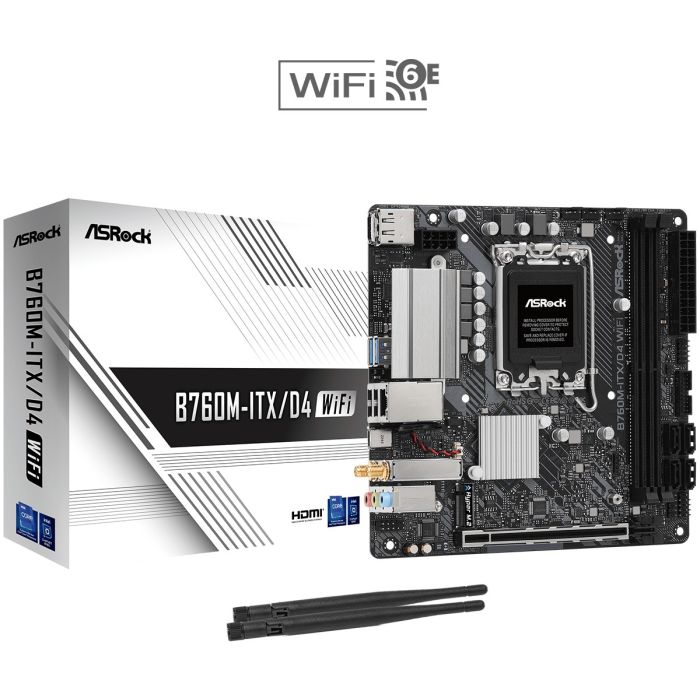

ASRock B760M-ITX/D4 WiFi

Specifications

• CPU - Supports 14 th, 13 th& 12 th Gen Intel Core™ Processors (LGA1700)
• - Supports Intel Hybrid Technology
• - Supports Intel Turbo Boost Max 3.0 Technology
• - Supports Intel Thermal Velocity Boost (TVB)
• - Supports Intel Adaptive Boost Technology (ABT)
• Chipset - Intel B760
• Memory - Dual Channel DDR4 Memory Technology
• - 2 x DDR4 DIMM Slots
• - Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC)*
• - Supports ECC UDIMM memory modules (operate in non-ECC mode)
• - Max. capacity of system memory: 64GB
• - Supports Intel Extreme Memory Profile (XMP) 2.0
• 1DPC 1R Up to 5333+ MHz (OC), 3200 MHz Natively.
• BIOS - 128Mb AMI UEFI Legal BIOS with GUI support
• Graphics - Intel Xe Graphics Architecture (Gen 12)
• - 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
• - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
• Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
• Audio - 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
• - Nahimic Audio
• LAN - Gigabit LAN 10/100/1000 Mb/s
• - Realtek RTL8111H
• Wireless LAN - 802.11ax Wi-Fi 6E Module
• - Supports IEEE 802.11a/b/g/n/ac/ax
• - Supports Dual-Band 2x2 with extended 6GHz band support*
• - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
• - Supports Bluetooth + High speed class II
• - Supports MU-MIMO
• The 6GHz band of Wi-Fi 6E module is supported by Microsoft Windows 11 only. The availability of the 6GHz band will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows Update and software updates once available.
• Slots **CPU:**
• - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
• Chipset:**
• - 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVio/CNVio2 (Integrated WiFi/BT)
• Supports NVMe SSD as boot disks
• Storage **CPU:**
• - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
• Chipset:**
• - 4 x SATA3 6.0 Gb/s Connectors
• Supports Intel Volume Management Device (VMD)
• RAID - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
• USB - 1 x USB 3.2 Gen2x2 Type-C (Rear)
• - 4 x USB 3.2 Gen1 (2 Rear, 2 Front)
• - 6 x USB 2.0 (2 Rear, 4 Front)
• All USB ports support ESD Protection
• Connector - 1 x CPU Fan Connector (4-pin)*
• - 1 x Chassis Fan Connector (4-pin)*
• - 1 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)**
• - 1 x 24 pin ATX Power Connector
• - 1 x 8 pin 12V Power Connector
• - 1 x Front Panel Audio Connector
• - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
• - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
• CPU_FAN1 and CHA_FAN2 support the fan power up to 1A (12W).
• CHA_FAN1/WP support the fan power up to 2A (24W).
• Rear Panel I/O - 2 x Antenna Ports
• - 1 x HDMI Port
• - 1 x DisplayPort 1.4
• - 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s)
• - 2 x USB 3.2 Gen1 Ports
• - 2 x USB 2.0 Ports
• - 1 x RJ-45 LAN Port
• - HD Audio Jacks: Line in / Front Speaker / Microphone
• Software and UEFI **Software**
• - ASRock Motherboard Utility (A-Tuning)
• UEFI**
• - ASRock EZ Mode
• - ASRock Full HD UEFI
• - ASRock My Favorites in UEFI
• - ASRock Auto Driver Installer
• - ASRock Instant Flash
• - ASRock Easy RAID Installer
• These utilities can be downloaded from ASRock Live Update & APP Shop.
• Accessories - 1 x User Manual
• - 1 x I/O Shield
• - 2 x SATA Data Cables
• - 2 x ASRock WiFi 2.4/5/6 GHz Antennas
• - 1 x Screw for M.2 Socket
• Form Factor - Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm
• OS - Microsoft Windows 10 64-bit / 11 64-bit
• Certifications - FCC, CE
• - ErP/EuP ready (ErP/EuP ready power supply is required)
