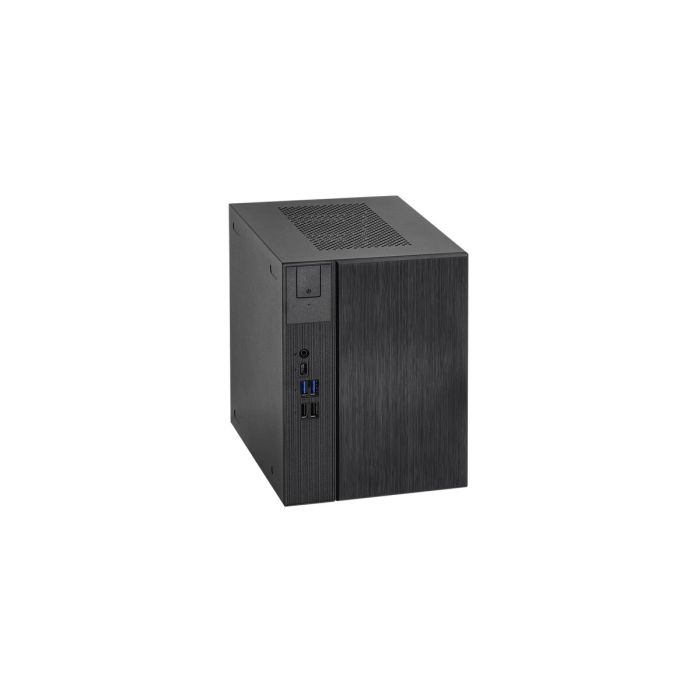

ASRock DeskMeet B760 Series

With just 8 liters of volume, DeskMeet is a powerful and compact desktop PC for daily computing, gaming, entertainment, content creation, and business. With desktop processor support and graphics card expansion, it can be configured to support SteamOS for a compact gaming experience. The chassis can be placed vertically or horizontally to fit neatly into any workspace.

Specifications

• CPU - Supports 14th, 13th & 12th Gen Intel Core™ Processors (LGA1700)
• Chipset - Intel B760
• Cooler - Supports Intel CPU Cooler (Max. Height 54mm)
• Memory - Supports Dual Channel DDR4 Memory Technology
• - 4 x DDR4 DIMM slots (Max. 128GB)
• - Supports DDR4 3200/2933/2800/2666/2400/2133 non-ECC, un-buffered memory*
• Supports DDR4 3200 natively.
• Graphics - Up to 200 mm (L) 125 mm (H) 38 mm (T); 6 mm backplate
• Height is measured from the PCIe gold fingers; thickness is measured from the rear of the graphics card PCB.
• Audio - Realtek ALC897 Audio Codec
• Storage - 3 x SATA3 6.0Gb/s ports
• - 1 x Hyper M.2 Socket (M2_1), supports type 2280 SATA3 6.0Gb/s & PCIe Gen4x4 (64 Gb/s) modes*
• - 1 x Hyper M.2 Socket (M2_2), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
• Supports Intel Optane™ Technology
• RAID - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
• LAN - Giga PHY Intel I219V
• Expansion Slots - 1 x PCIe 4.0 x 16
• - 1 x M.2 Socket (Key E), supports type 2230 Wi-Fi/BT module and Intel CNVi (Integrated Wi-Fi/BT)
• Front I/O - 1 x Headphone/Headset Jack
• - 1 x USB 3.2 Gen1 Type-C
• - 2 x USB 3.2 Gen1 Type-A
• - 2 x USB 2.0 Type-A
• Rear I/O - 1 x DisplayPort 1.4
• - 1 x HDMI
• - 1 x D-Sub
• - 2 x USB 2.0
• - 2 x USB 3.2 Gen1 Type-A
• - 1 x RJ-45 LAN Port
• - HD Audio Jacks: Line in / Front Speaker / Microphone
• Connectors - 1 x Chassis Intrusion Header
• - 1 x CPU Fan Connector (4-pin)
• - 1 x Chassis/Water Pump Fan Connector (4-pin)
• - 1 x 24 pin ATX Power Connector
• - 1 x 8 pin 12V Power Connector
• - 1 x Front Panel Header
• - 1 x USB 2.0 Header (Support 2 USB 2.0 ports) (Supports ESD Protection)
• Volume (liters) - 8L
• Power Unit - 500W power supply (80+ Bronze, peak 550W)
• Accessory - Quick Installation Guide
• - 2 x SATA Data Cables
• - 1 x Screws Package
• Dimension - 168 x 219.3 x 218.3 mm (excl. Protrusions)
• - 168 x 236.1 x 221.6 mm (incl. Protrusions)
• OS - Microsoft Windows 10 64-bit / 11 64-bit
