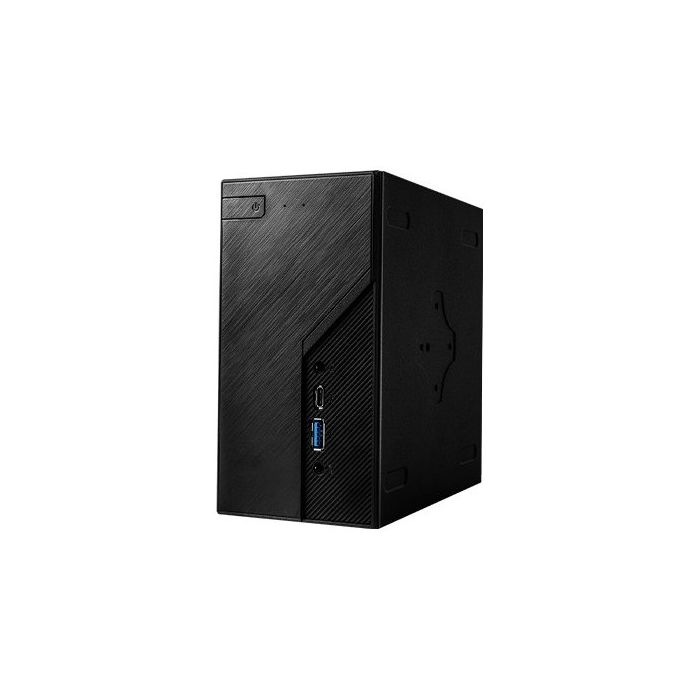

ASRock DeskMini X600/USB4 Series

DeskMini X600/USB4 features a sleek 1.92L design while delivering exceptional performance. It supports AMD Ryzen AM5 processors, DDR5 memory, and PCIe Gen5 storage for outstanding speed and multitasking. Upgraded with a USB4 port, it offers lightning-fast 40Gbps data transfer, supports high-resolution DisplayPort signals, and includes a 15W PD function for fast charging. This combination of power and efficiency makes it ideal for general users, business applications, and professionals who need high performance in a stylish, space-saving form factor.

Specifications

• CPU - Supports AMD Socket AM5 Ryzen™ 9000/8000/7000 Series Processors, up to 65W
• Chipset - AMD X600
• Cooler - Supports AMD AM5/AM4 Cooler (Max. Height 47mm)
• Memory - Supports 2 x SO-DIMM DDR5-6400+(OC)MHz memory, Max. 128GB (non-ECC)
• Graphics - Integrated AMD RDNA™ graphics (Actual support may vary by CPU)
• Graphics Output - 1 x DisplayPort 1.4 (4K@120Hz)
• - 1 x HDMI 2.1 (4K@120Hz)
• - 1 x USB Type-C with DP Alt Mode
• Audio - Realtek ALC269 Audio Codec
• Storage - 2 x SATA3 6Gb 2.5-inch 7mm/9.5mm Hard Drive
• - 1 x M.2 Socket (M2_1), support type 2280 PCIe Gen5x4 (128 Gb/s) mode*
• - 1 x M.2 Socket (M2_2), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
• Supports NVMe SSD as boot disks
• RAID - Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
• LAN - 2.5 Gigabit LAN (RTL8125BG)
• WLAN - 1 x M.2 Socket (Key E), supports type 2230 Wi-Fi/BT module
• Front I/O - 1 x MIC-in
• - 1 x USB 3.2 Gen1 Type-C
• - 1 x USB 3.2 Gen1 Type-A
• - 1 x Headphone/Headset Jack
• Rear I/O - 1 x DC-In Jack (Compatible with the 19V power adapter)
• - 1 x USB4 Type-C with Ryzen™ 8000G Series Processors*
• - 1 x USB 3.2 Gen2 Type-C with Ryzen™ 9000/7000 Series Processors*
• - 2 x USB 3.2 Gen1 Type-A
• - 1 x RJ-45 LAN Port (2.5G)
• Supports USB PD 3.0 up to 5V@3A (15W) charging. Supports DP Alt Mode.
• Connectors - 1 x USB 2.0 Header
• - 1 x Front Panel Header
• - 2 x 4-Pin fan connectors (CPU, SYS)
• - 1 x Internal Speaker Header (4-Pin)
• - 1 x Chassis Intrusion Header (2-Pin)
• - 1 x Audio Header (4-Pin)
• Accessory - 2 x SATA Data with Power Cable
• - 1 x 120W/19V adapter
• - 1 x Screws Pack
• - 1 x AW-XB611NF Wi-Fi kit
• Dimension - 155 x 155 x 80 mm (1.92L)
• OS - Microsoft Windows 11 64-bit
