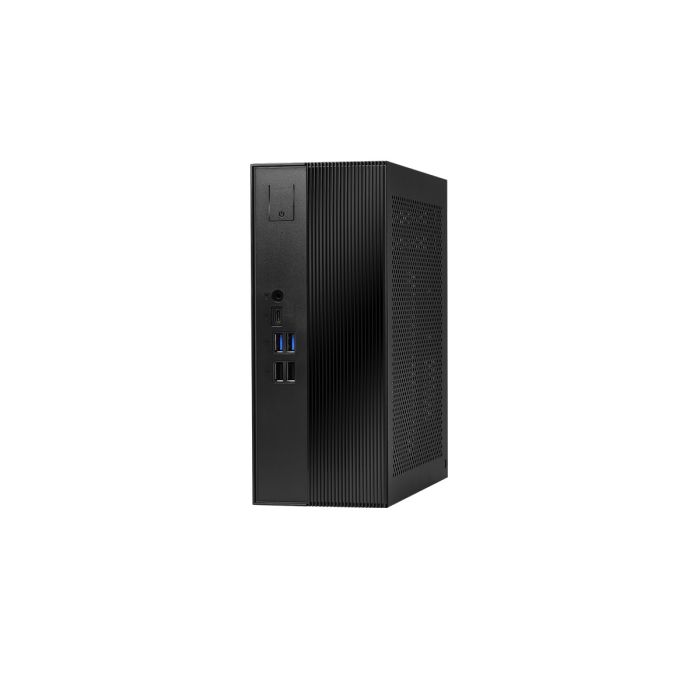

ASRock DeskSlim B760 Series

DeskSlim can also be configured as a compact gaming PC with SteamOS support, offering a flexible setup for living room entertainment and everyday gaming. Watch our setup video to learn how to configure SteamOS on DeskSlim.

Specifications

• CPU - Supports 14th/13th/12th Gen Intel Core™ Processors, up to 125W
• Chipset - Intel B760
• Cooler - Supports Intel CPU Cooler (Max. Height 71mm)
• Memory - Supports Dual Channel DDR5 Memory Technology
• - 4 x DDR5 DIMM slots (Max. 256GB)
• -14th and 13th Gen Intel Core™ Processors support DDR5 non-ECC, un-buffered memory up to 7200+(OC)
• -12th Gen Intel Core™ Processors support DDR5 non-ECC, un-buffered memory up to 4800
• Please refer to Memory Support List on ASRock's website for more information.
• Graphics - Up to 200 mm (L) 70 mm (H) 38 mm (T); 6 mm backplate
• Height is measured from the PCIe gold fingers; thickness is measured from the rear of the graphics card PCB.
• Graphics Output - 2 x DisplayPort 1.4
• - 1 x HDMI
• Audio - Realtek ALC897 Audio Codec
• Front USB - 1 x USB 3.2 Gen1 Type-C
• - 2 x USB 3.2 Gen1 Type-A
• - 2 x USB 2.0
• Rear USB - 2 x USB 2.0
• - 2 x USB 3.2 Gen1 Type-A
• Storage - 2 x SATA 6Gb/s Ports
• - 2 x M.2 2280 Slot for PCIe Gen4x4 SSD
• LAN - 1 x 2.5G LAN Port
• Expansion Slots - 1 x PCIe Gen5x16 Slot
• - 1 x M.2 2230 slot for Wi-Fi/BT module and Intel CNVi
• Connectors - 1 x Chassis Intrusion Header
• - 1 x Addressable LED Header*
• - 1 x CPU Fan Connector**
• - 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
• - 1 x 8 pin 12V Power Connector
• - 1 x Front Panel Header
• - 2 x SATA Power Connectors
• - 1 x USB 2.0 Header (Supports 1 USB 2.0 port) (Supports ESD Protection)
• Supports in total up to 5V/3A, 15W LED Strip
• The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
• The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
• Accessory - 2 x SATA Cables
• - 2 x SATA Data with Power Cables
• - 2 x Screws for M.2 Sockets
• - 1 x Screw for WiFi Module
• - 4 x VESA Screws
• - 1 x Wi-Fi6 Kit (AW-XB611NF)
• Dimension - 95 x 235 x 220 mm
• OS - Microsoft Windows 11 64-bit
