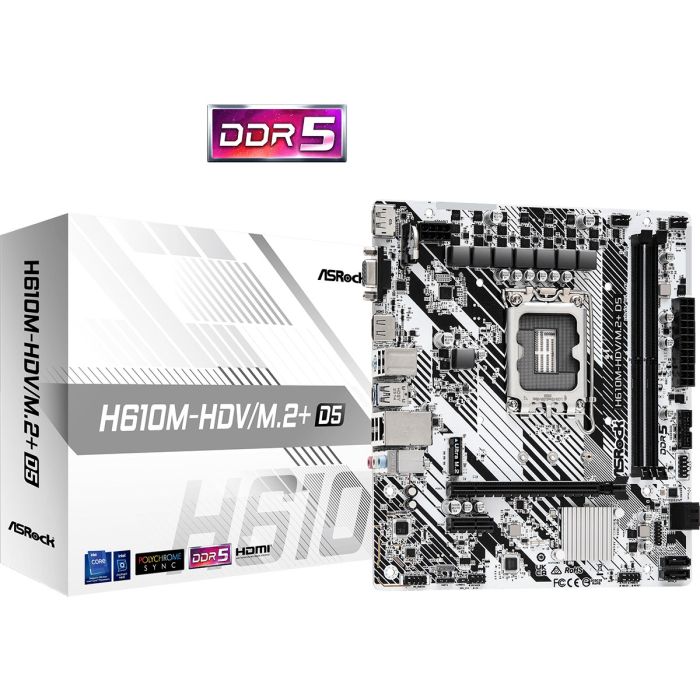

ASRock H610M-HDV/M.2+ D5

Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.

Specifications

• CPU - Supports 14 th, 13 th& 12 th Gen Intel Core™ Processors (LGA1700)
• - Supports Intel Hybrid Technology
• - Supports Intel Turbo Boost Max 3.0 Technology
• Chipset - Intel H610
• Memory - Dual Channel DDR5 Memory Technology
• - 2 x DDR5 DIMM Slots
• - 13 th Gen Intel Core™ Processors support DDR5 non-ECC, un-buffered memory up to 5600*
• - 12 th Gen Intel Core™ Processors support DDR5 non-ECC, un-buffered memory up to 4800*
• - Max. capacity of system memory: 96GB
• - Supports Intel Extreme Memory Profile (XMP) 3.0
• Actual support may vary by CPU.
• BIOS - 128Mb AMI UEFI Legal BIOS with GUI support
• Graphics - Intel Xe Graphics Architecture (Gen 12)*
• - 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
• - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
• - 1 x D-Sub, supports max. resolution up to Full HD (1920x1080) 60Hz
• Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
• Audio - 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
• LAN - Gigabit LAN 10/100/1000 Mb/s
• - Realtek 8111H
• Slots CPU:
• - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
• Chipset:
• - 1 x PCIe 3.0 x1 Slot (PCIE2)*
• Supports NVMe SSD as boot disks
• Storage Chipset:
• - 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen3x4 (32 Gb/s) mode*
• - 4 x SATA3 6.0 Gb/s Connectors
• Supports NVMe SSD as boot disks
• USB - 1 x USB 3.2 Gen1 Type-C (Rear)
• - 3 x USB 3.2 Gen1 Type-A (1 Rear, 2 Front)
• - 6 x USB 2.0 (4 Rear, 2 Front)
• All USB ports support ESD Protection
• Connector - 1 x SPI TPM Header
• - 1 x Chassis Intrusion and Speaker Header
• - 1 x Addressable LED Header*
• - 1 x CPU Fan Connector (4-pin)**
• - 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
• - 1 x 24 pin ATX Power Connector
• - 1 x 8 pin 12V Power Connector
• - 1 x Front Panel Audio Connector
• - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports)
• - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
• Support in total up to 5V/3A, 15W LED Strip
• CPU_FAN1 supports the fan power up to 1A (12W).
• CHA_FAN1/WP supports the fan power up to 2A (24W).
• Rear Panel I/O - 1 x PS/2 Mouse/Keyboard Port
• - 1 x D-Sub Port
• - 1 x HDMI Port
• - 1 x DisplayPort 1.4
• - 1 x USB 3.2 Gen1 Type-C Port
• - 1 x USB 3.2 Gen1 Type-A Port
• - 4 x USB 2.0 Ports
• - 1 x RJ-45 LAN Port
• - HD Audio Jacks: Line in / Front Speaker / Microphone
• Software and UEFI **Software**
• - ASRock Motherboard Utility (A-Tuning)
• - ASRock Polychrome SYNC*
• UEFI**
• - ASRock EZ Mode
• - ASRock Full HD UEFI
• - ASRock My Favorites in UEFI
• - ASRock Auto Driver Installer
• - ASRock Instant Flash
• These utilities can be downloaded from ASRock Live Update & APP Shop.
• Accessories - 1 x User Manual
• - 1 x I/O Shield
• - 2 x SATA Data Cables
• - 1 x Screw for M.2 Socket
• Form Factor - Micro ATX Form Factor: 8.66-in x 7.6-in, 22.0 cm x 19.3 cm
• OS - Microsoft Windows 10 64-bit / 11 64-bit
• Certifications - FCC, CE
• - ErP/EuP ready (ErP/EuP ready power supply is required)
