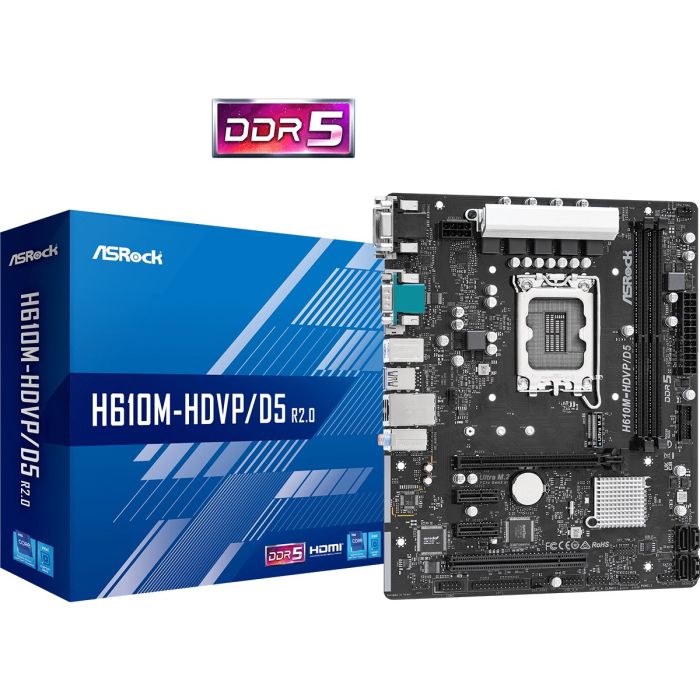

ASRock H610M-HDVP/D5 R2.0

Due to the unique electrical architecture of DDR5 DIMM, theres a high risk of damaging the memory module if AC power isnt disconnected properly during removal or installation. To prevent this, ASRock has implemented a trouble free protection circuit on every DDR5 motherboard, lowers the risk of damaging your memory module.

Specifications

• CPU - Supports 14 th, 13 th& 12 th Gen Intel Core™ Processors (LGA1700)
• - 5 Power Phase design
• - Supports Intel Hybrid Technology
• - Supports Intel Turbo Boost Max 3.0 Technology
• Chipset - Intel H610
• Memory - Dual Channel DDR5 Memory Technology
• - 2 x DDR5 DIMM Slots
• - 13 th Gen Intel Core™ Processors support DDR5 non-ECC, un-buffered memory up to 5600*
• - 12 th Gen Intel Core™ Processors support DDR5 non-ECC, un-buffered memory up to 4800*
• - Max. capacity of system memory: 96GB
• - Supports Intel Extreme Memory Profile (XMP) 3.0
• Actual support may vary by CPU
• BIOS - 128Mb AMI UEFI Legal BIOS with multilingual GUI support
• - ACPI 6.0 Compliant wake up events
• - SMBIOS 2.7 Support
• - CPU Core/Cache, CPU GT, VDD_CPU, VDD_IMC, VCCIN AUX, +1.05V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustment
• Graphics - Intel Xe Graphics Architecture (Gen 12)
• - Four graphics output options: D-Sub, DVI-D, HDMI and DisplayPort 1.4**
• - Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
• - Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz
• - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
• - Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz
• - Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports
• Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
• Supports up to 3 displays simultaneously
• Audio - 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
• - Supports Surge Protection
• LAN - PCIE x1 Gigabit LAN 10/100/1000 Mb/s
• - Realtek RTL8111H
• - Supports Wake-On-LAN
• - Supports Lightning/ESD Protection
• - Supports Energy Efficient Ethernet 802.3az
• - Supports PXE
• Slots CPU:
• - 1 x PCIe 4.0 x16 (PCIE1), supports x16 mode*
• Chipset:
• - 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)*
• - 1 x PCI Slot
• Supports NVMe SSD as boot disks
• Storage Chipset:
• - 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes*
• - 4 x SATA3 6.0 Gb/s Connectors
• Supports NVMe SSD as boot disks
• Connector - 1 x Print Port Header
• - 1 x COM Port Header
• - 1 x SPI TPM Header
• - 1 x Chassis Intrusion and Speaker Header
• - 1 x CPU Fan Connector (4-pin)*
• - 1 x Chassis Fan Connector (4-pin)**
• - 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
• - 1 x 24 pin ATX Power Connector
• - 1 x 8 pin 12V Power Connector
• - 1 x Front Panel Audio Connector
• - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
• - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
• The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
• The Chassis Fan supports the Chassis fan of maximum 1A (12W) fan power.
• The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
• Rear Panel I/O - 1 x PS/2 Keyboard Port
• - 1 x PS/2 Mouse Port
• - 1 x Serial Port: COM1
• - 1 x D-Sub Port
• - 1 x DVI-D Port
• - 1 x HDMI Port
• - 1 x DisplayPort 1.4
• - 2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
• - 2 x USB 2.0 Ports (Supports ESD Protection)
• - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
• - HD Audio Jacks: Line in / Front Speaker / Microphone
• Software and UEFI **Software**
• - ASRock Motherboard Utility (A-Tuning)
• UEFI**
• - ASRock EZ Mode
• - ASRock Full HD UEFI
• - ASRock My Favorites in UEFI
• - ASRock Instant Flash
• These utilities can be downloaded from ASRock Live Update & APP Shop.
• Accessories - I/O Shield
• - 2 x SATA Data Cables
• - 1 x Screw for M.2 Socket
• Hardware Monitor - Fan Tachometer: CPU, Chassis, Chassis/Water Pump Fans
• - Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis, Chassis/Water Pump Fans
• - Fan Multi-Speed Control: CPU, Chassis, Chassis/Water Pump Fans
• - CASE OPEN detection
• - Voltage monitoring: CPU Vcore, +1.05V_PCH, VDD_CPU, VCCIN AUX, +1.05V PROC, +0.82V PCH, +12V, +5V, +3.3V, VCCSA
• Form Factor - Micro ATX Form Factor: 9.6-in x 7.8-in, 24.3 cm x 19.8 cm
• - Solid Capacitor design
• OS - Microsoft Windows 10 64-bit / 11 64-bit
• Certifications - FCC, CE
• - ErP/EuP ready (ErP/EuP ready power supply is required)
