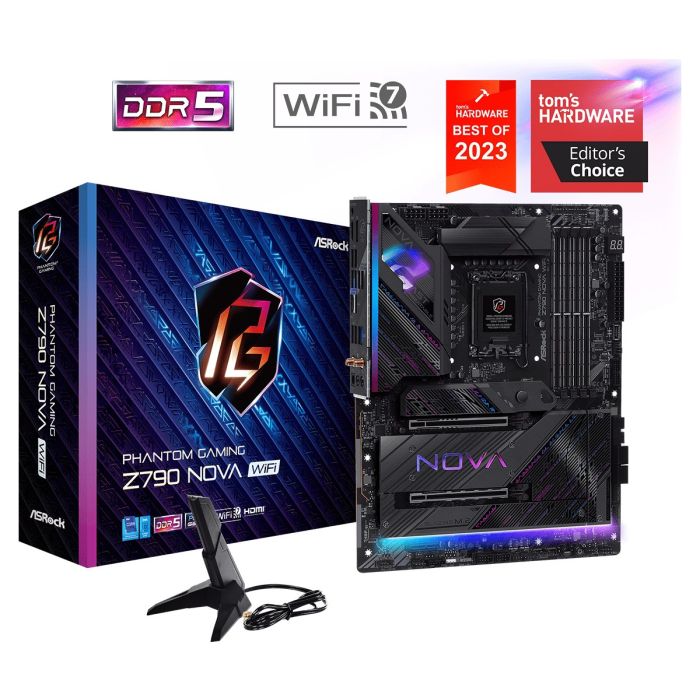

ASRock Z790 Nova WiFi

Nova is the most significant energy discharge ever witnessed by mankind, its super-powerful which represents the performance our motherboard can deliver.

Specifications

• Supports Intel Volume Management Device (VMD)
• Supports NVMe SSD as boot disks
• If M2_1 is occupied, PCIE1 will downgrade to x8 mode.
• RAID - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
• - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
• USB - 2 x USB 3.2 Gen2x2 Type-C (1 Rear, 1 Front)
• - 4 x USB 3.2 Gen2 Type-A (Rear)
• - 7 x USB 3.2 Gen1 Type-A (3 Rear, 4 Front)
• - 6 x USB 2.0 (2 Rear, 4 Front)
• All USB ports support ESD Protection
• Connector - 3 x Thermistor Cable Headers
• - 1 x SPI TPM Header
• - 1 x Power LED and Speaker Header
• - 1 x RGB LED Header*
• - 3 x Addressable LED Headers**
• - 1 x CPU Fan Connector (4-pin)***
• - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
• - 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
• - 1 x VRM Fan Connector (4-pin) (Smart Fan Speed Control)******
• - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
• - 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
• - 1 x Front Panel Audio Connector (15 Gold Audio Connector)
• - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)
• - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
• - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
• - 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
• - 1 x Dr. Debug with LED
• - 1 x Power Button with LED
• - 1 x Reset Button with LED
• Supports in total up to 12V/3A, 36W LED Strip
• Support in total up to 5V/3A, 15W LED Strip
• CPU_FAN1 supports the fan power up to 1A (12W).
• CPU_FAN2/WP supports the fan power up to 2A (24W).
• CHA_FAN1~5/WP support the fan power up to 2A (24W).
• CPU_FAN2/WP and CHA_FAN1~5/WP can auto detect if 3-pin or 4-pin fan is in use.
• VRM_FAN supports the VRM fan power up to 2A (24W).
• Rear Panel I/O - 2 x Antenna Ports
• - 1 x HDMI Port
• - 1 x DisplayPort 1.4
• - 1 x Optical SPDIF Out Port
• - 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s)
• - 4 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) *
• - 3 x USB 3.2 Gen1 Ports *
• - 2 x USB 2.0 Ports
• - 1 x RJ-45 LAN Port
• - 1 x Clear CMOS Button
• - 1 x Line Out Jack (Gold Audio Jack)
• - 1 x Microphone Input Jack (Gold Audio Jack)
• USB32_12 support Ultra USB Power. USB32_34 are Lightning Gaming Ports.
• Device exceeds USB 3.2 Type-A power rating of 5V@0.9A (4.5W) may trigger over-current protection (OCP), will require system reboot to restore USB power.
• Software and UEFI **Software**
• - ASRock Motherboard Utility (Phantom Gaming Tuning)
• - Killer Control Center
• - ASRock Polychrome SYNC*
• UEFI**
• - ASRock EZ Mode
• - ASRock Full HD UEFI
• - ASRock My Favorites in UEFI
• - ASRock Auto Driver Installer
• - ASRock Instant Flash
• - ASRock Easy RAID Installer
• These utilities can be downloaded from ASRock Live Update & APP Shop.
• Accessories - 1 x User Manual
• - 4 x SATA Data Cables
• - 1 x Graphics Card Holder
• - 1 x ASRock WiFi 2.4/5/6 GHz Antenna
• - 1 x ARGB Splitter Cable
• - 3 x Thermistor Cables
• - 5 x Screws for M.2 Sockets
• - 5 x Standoffs for M.2 Sockets
• Form Factor - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
• - 8 Layer PCB
• - 2oz Copper PCB
• OS - Microsoft Windows 10 64-bit / 11 64-bit
• Certifications - FCC, CE
• - ErP/EuP ready (ErP/EuP ready power supply is required)
