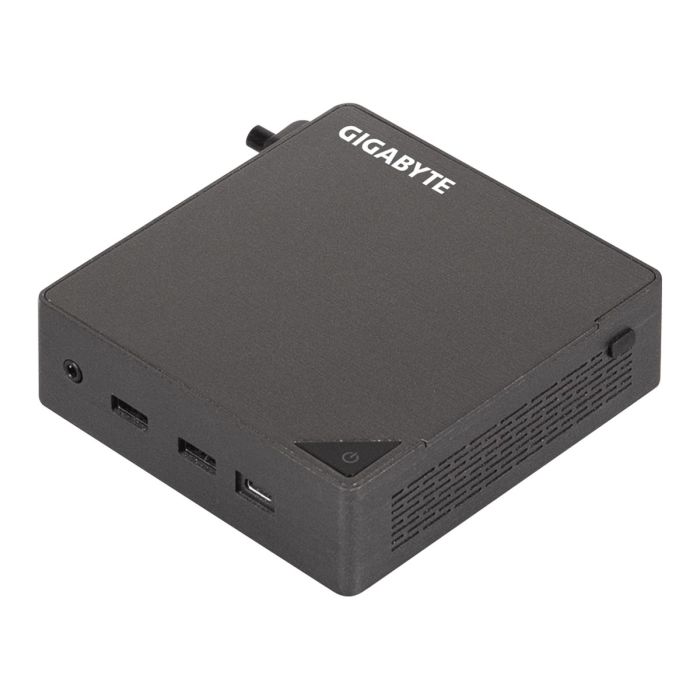

GB-BRR5-430

有货

SKU

Mini-PcBarebone_GB-BRR5-430

率先评论此产品

报价订购

GB-BRR5-430

跳到结尾的图片库

跳转到图像库的开头

體積尺寸: 112.6 x 34.4 x 119.4 mm (W x H x D) (Slim chassis design)
處理器: AMD Ryzen™ AI 5 430 Processor | 4C/8T, 12M Cache, up to 4.5 GHz, 28W
記憶體: 2 x SO-DIMM DDR5 slots, support up to 5600MHz | Max. 96GB
LAN: 2.5GbE LAN (Realtek® 8125)
Wifi Card: Realtek® Wi-Fi 7 RTL8922AE
繪圖晶片: AMD Radeon™ 840M Graphics, 2.8GHz : | 2 x HDMI v2.1, 4096x2160 60Hz (TMDS, CEC) | 2 x USB Type C ALT (DisplayPort v2.1)
Audio: Realtek ALC245
擴充插槽: 1 x M.2 M Key 2280 slot (PCIe Gen4x4) | 1 x M.2 M Key 2280 slot (PCIe Gen4x4) | 1 x M.2 E Key 2230 Wi-Fi & BT slot
前置 I/O: 1 x Headset | 1 x USB USB 2.0 Type A | 1 x USB 3.2 Gen2 Type A | 1 x USB4
背板 I/O: 2 x HDMI (FRL & CEC) | 1 x USB4 | 1 x USB 3.2 Gen2 Type C (PD IN) | 1 x USB 3.2 Gen2 Type A | 1 x USB 2.0 Type A | 1 x RJ45
Left I/O: 1 x Kensington Lock Slot
電源供應: Input : AC 100-240V | Output : DC 28V/5A, 140W (Type-C PD)
VESA 支援: VESA support | Supports 75 x 75 and 100 x 100 mm
Support OS: Windows 11 64bit | Ubuntu 25.10
環境操作溫度: System Environment Operating Temperature: 0°C to +35°C | System Storage Temperature: -20°C to +60°C
NPU: Up to 50 TOPS
體積尺寸: 112.6 x 34.4 x 119.4 mm (W x H x D) (Slim chassis design)
處理器: AMD Ryzen™ AI 5 430 Processor | 4C/8T, 12M Cache, up to 4.5 GHz, 28W
記憶體: 2 x SO-DIMM DDR5 slots, support up to 5600MHz | Max. 96GB
LAN: 2.5GbE LAN (Realtek® 8125)
Wifi Card: Realtek® Wi-Fi 7 RTL8922AE
繪圖晶片: AMD Radeon™ 840M Graphics, 2.8GHz : | 2 x HDMI v2.1, 4096x2160 60Hz (TMDS, CEC) | 2 x USB Type C ALT (DisplayPort v2.1)
Audio: Realtek ALC245
擴充插槽: 1 x M.2 M Key 2280 slot (PCIe Gen4x4) | 1 x M.2 M Key 2280 slot (PCIe Gen4x4) | 1 x M.2 E Key 2230 Wi-Fi & BT slot
前置 I/O: 1 x Headset | 1 x USB USB 2.0 Type A | 1 x USB 3.2 Gen2 Type A | 1 x USB4
背板 I/O: 2 x HDMI (FRL & CEC) | 1 x USB4 | 1 x USB 3.2 Gen2 Type C (PD IN) | 1 x USB 3.2 Gen2 Type A | 1 x USB 2.0 Type A | 1 x RJ45
Left I/O: 1 x Kensington Lock Slot
電源供應: Input : AC 100-240V | Output : DC 28V/5A, 140W (Type-C PD)
VESA 支援: VESA support | Supports 75 x 75 and 100 x 100 mm
Support OS: Windows 11 64bit | Ubuntu 25.10
環境操作溫度: System Environment Operating Temperature: 0°C to +35°C | System Storage Temperature: -20°C to +60°C
NPU: Up to 50 TOPS
