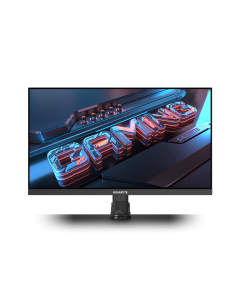

M28U Arm Edition 电竞屏幕
- Panel Size (inch): 28" SS IPS
- Panel Type: Edge type
- Display Viewing Area (HxV): 631.928 x 359.78 (mm)
- Color Saturation: 94% DCI-P3/ 120% sRGB
- Resolution: 3840 x 2160 (UHD)
- Display Surface: Non-glare
- Pixel Pitch: 0.16 (H) x 0.16 (V)
- Brightness: 300 cd/m2 (TYP)
- Contrast Ratio (Typ.): 1000:1
- Viewing Angle: 178°(H)/178°(V)
- Display Colors: 16.7M
- Refresh Rate (Max): 144Hz | 120Hz for Console Game*
- Response Time: 1ms GTG / 2ms MPRT
- VRR: FreeSync Premium Pro
- HDR Support: VESA Display HDR400
- Flicker-free: Yes
- Connectivity: 2 x HDMI 2.1 (support 4K 144Hz 4:4:4 @ DSC enabled or 4K 144Hz 4:2:0) * | 1 x Display port 1.4 (DSC) | 3 x USB 3.2 Gen 1 Downstream ports | 1 x USB 3.2 Gen 1 Upstream port | 1 x USB Type-C (Alternate Mode; Upstream port; Power Delivery up to 18W)
- Speaker: 3W x2
- Unique Features: OSD Sidekick ** | Aim Stabilizer Sync | Black Equalizer | Dashboard | Crosshair | Timer | Counter | Auto-Update | KVM | 6 axis Color Control | Smart OD
- Power Type: Power Board Build-in
- Power Consumption: 40.5W ***
- Power Saving Mode: 0.5W
- Power Off Mode: 0.3W
- Voltage: AC 100-240V ~ 50/60Hz
- Tilt(angle): -5°~+25°
- Swivel(angle): -270°~+270°
- Pivot(angle/direction): 90° (CW)
- Height Adjustment (mm): 208mm
- Forward Extension (mm): 230mm
- VESA Wall Mounting(mm): 100*100mm
- Kensington lock: Yes
- Phys. Dimension with Stand(WxHxD): 636.5*636.6*402.9 mm
- Phys. Dimension w/o stand (WxHxD): 636.5*372.3*63.1 mm
- Box Dimension (WxHxD): 930*510*165 mm
- Net Weight with stand (Esti.): 8.6 (kg)
- Net Weight without stand (Esti.): 5.18 (kg)
- Gross Weight (Esti.): 11.7 (kg)
- Accessories: Power cable/HDMI cable/DP cable/USB cable/QSG/Warranty card
- Note: *HDMI2.1 supports PS5 and Xbox Series X at 4K UHD@120Hz (4:2:0) | **To enable OSD Sidekick, it requires connection between PC and monitor with USB (A-Male to B-Male) cable | ***The test condition follows CEC standards.
- Panel Size (inch): 28" SS IPS
- Panel Type: Edge type
- Display Viewing Area (HxV): 631.928 x 359.78 (mm)
- Color Saturation: 94% DCI-P3/ 120% sRGB
- Resolution: 3840 x 2160 (UHD)
- Display Surface: Non-glare
- Pixel Pitch: 0.16 (H) x 0.16 (V)
- Brightness: 300 cd/m2 (TYP)
- Contrast Ratio (Typ.): 1000:1
- Viewing Angle: 178°(H)/178°(V)
- Display Colors: 16.7M
- Refresh Rate (Max): 144Hz | 120Hz for Console Game*
- Response Time: 1ms GTG / 2ms MPRT
- VRR: FreeSync Premium Pro
- HDR Support: VESA Display HDR400
- Flicker-free: Yes
- Connectivity: 2 x HDMI 2.1 (support 4K 144Hz 4:4:4 @ DSC enabled or 4K 144Hz 4:2:0) * | 1 x Display port 1.4 (DSC) | 3 x USB 3.2 Gen 1 Downstream ports | 1 x USB 3.2 Gen 1 Upstream port | 1 x USB Type-C (Alternate Mode; Upstream port; Power Delivery up to 18W)
- Speaker: 3W x2
- Unique Features: OSD Sidekick ** | Aim Stabilizer Sync | Black Equalizer | Dashboard | Crosshair | Timer | Counter | Auto-Update | KVM | 6 axis Color Control | Smart OD
- Power Type: Power Board Build-in
- Power Consumption: 40.5W ***
- Power Saving Mode: 0.5W
- Power Off Mode: 0.3W
- Voltage: AC 100-240V ~ 50/60Hz
- Tilt(angle): -5°~+25°
- Swivel(angle): -270°~+270°
- Pivot(angle/direction): 90° (CW)
- Height Adjustment (mm): 208mm
- Forward Extension (mm): 230mm
- VESA Wall Mounting(mm): 100*100mm
- Kensington lock: Yes
- Phys. Dimension with Stand(WxHxD): 636.5*636.6*402.9 mm
- Phys. Dimension w/o stand (WxHxD): 636.5*372.3*63.1 mm
- Box Dimension (WxHxD): 930*510*165 mm
- Net Weight with stand (Esti.): 8.6 (kg)
- Net Weight without stand (Esti.): 5.18 (kg)
- Gross Weight (Esti.): 11.7 (kg)
- Accessories: Power cable/HDMI cable/DP cable/USB cable/QSG/Warranty card
- Note: *HDMI2.1 supports PS5 and Xbox Series X at 4K UHD@120Hz (4:2:0) | **To enable OSD Sidekick, it requires connection between PC and monitor with USB (A-Male to B-Male) cable | ***The test condition follows CEC standards.
