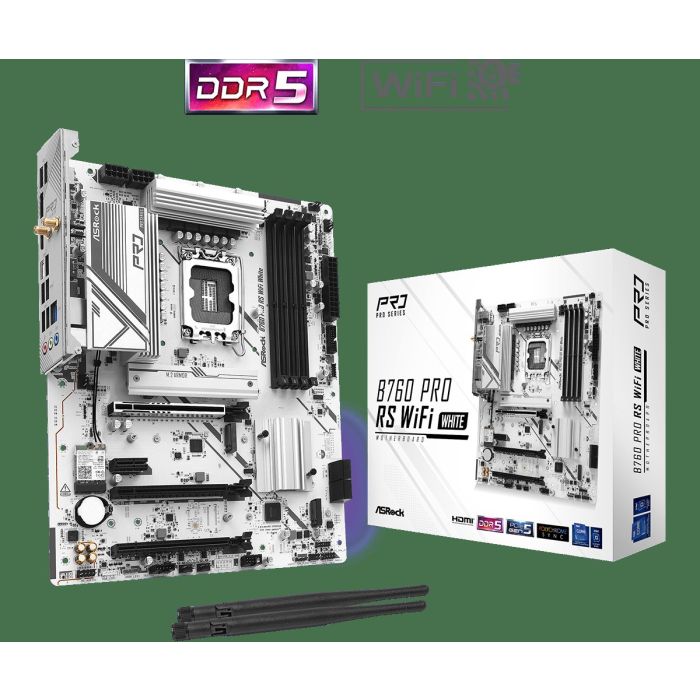

ASRock B760 Pro RS WiFi White

Modern and futuristic, with the attractive specifications and perfect balance, the Race Sport (RS) Edition is the evolution of the most popular PRO series motherboard.

Specifications

• Supports Intel Volume Management Device (VMD)
• Supports NVMe SSD as boot disks
• RAID - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
• USB - 2 x USB 3.2 Gen2 Type-C (1 Rear, 1 Front)
• - 1 x USB 3.2 Gen2 Type-A (Rear)
• - 6 x USB 3.2 Gen1 (4 Rear, 2 Front)
• - 4 x USB 2.0 (2 Rear, 2 Front)
• All USB ports support ESD Protection
• Connector - 1 x eDP Signal Connector
• - 1 x SPI TPM Header
• - 1 x Power LED and Speaker Header
• - 2 x RGB LED Headers*
• - 2 x Addressable LED Headers**
• - 1 x CPU Fan Connector (4-pin)***
• - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
• - 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
• - 1 x 24 pin ATX Power Connector
• - 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
• - 1 x Front Panel Audio Connector
• - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)
• - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports)
• - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
• - 1 x Front Panel Type C USB 3.2 Gen2 Header (10 Gb/s)
• Support in total up to 12V/3A, 36W LED Strip
• Support in total up to 5V/3A, 15W LED Strip
• CPU_FAN1 supports the fan power up to 1A (12W).
• CPU_FAN2/WP supports the fan power up to 2A (24W).
• CHA_FAN1~5/WP support the fan power up to 2A (24W).
• CPU_FAN2/WP and CHA_FAN1~5/WP can auto detect if 3-pin or 4-pin fan is in use.
• Rear Panel I/O - 2 x Antenna Ports
• - 1 x HDMI Port
• - 1 x DisplayPort 1.4
• - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
• - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s)
• - 4 x USB 3.2 Gen1 Ports
• - 2 x USB 2.0 Ports
• - 1 x RJ-45 LAN Port
• - HD Audio Jacks: Line in / Front Speaker / Microphone
• Software and UEFI **Software**
• - ASRock Motherboard Utility (A-Tuning)
• - ASRock Dragon 2.5G LAN Software
• - ASRock Polychrome SYNC*
• UEFI**
• - ASRock EZ Mode
• - ASRock Full HD UEFI
• - ASRock My Favorites in UEFI
• - ASRock Auto Driver Installer
• - ASRock Instant Flash
• - ASRock Easy RAID Installer
• These utilities can be downloaded from ASRock Live Update & APP Shop.
• Accessories - 2 x SATA Data Cables
• - 2 x ASRock WiFi 2.4/5/6 GHz Antennas
• - 3 x Screws for M.2 Sockets
• - 1 x Standoff for M.2 Socket
• Form Factor - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
• OS - Microsoft Windows 10 64-bit / 11 64-bit
• Certifications - FCC, CE
• - ErP/EuP ready (ErP/EuP ready power supply is required)
