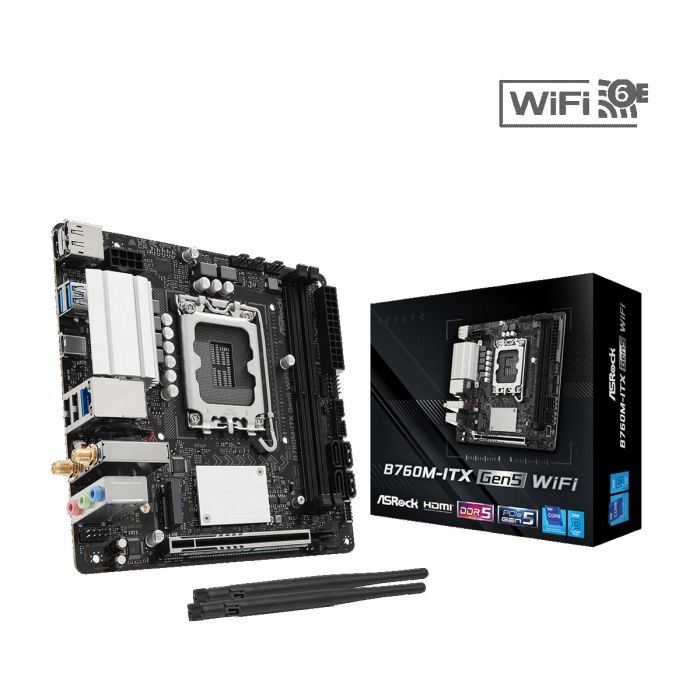

ASRock B760M-ITX Gen5 WiFi

Built to deliver reliable performance with versatile features, perfect for daily tasks.

Specifications

• CPU - Supports 14 th, 13 th& 12 th Gen Intel Core™ Processors (LGA1700)
• - Supports Intel Hybrid Technology
• - Supports Intel Turbo Boost Max 3.0 Technology
• - Supports Intel Thermal Velocity Boost (TVB)
• - Supports Intel Adaptive Boost Technology (ABT)
• Chipset - Intel B760
• Memory - Dual Channel DDR5 Memory Technology
• - 2 x DDR5 DIMM Slots
• - Supports DDR5 non-ECC, un-buffered memory up to 7800+(OC)*
• - Max. capacity of system memory: 128GB*
• - Supports Intel Extreme Memory Profile (XMP) 3.0
• 1DPC 1R Up to 7800+ MHz (OC), 5600 MHz Natively.
• BIOS - 128Mb AMI UEFI Legal BIOS with GUI support
• Graphics - Intel Xe Graphics Architecture (Gen 12)
• - 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
• - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
• Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
• Audio - 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
• - Nahimic Audio
• LAN - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
• - Dragon RTL8125BG
• - Supports Dragon 2.5G LAN Software
• - Smart Auto Adjust Bandwidth Control
• - Visual User Friendly UI
• - Visual Network Usage Statistics
• - Optimized Default Setting for Game, Browser, and Streaming Modes
• - User Customized Priority Control
• Wireless LAN - 802.11axe Wi-Fi 6E Module
• - Supports IEEE 802.11a/b/g/n/ac/ax/axe
• - Supports Dual-Band 2x2 with extended 6GHz band support*
• - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
• - Supports Bluetooth 5.3
• - Supports MU-MIMO
• The 6GHz band of Wi-Fi 6E module is supported by Microsoft Windows 11 only. The availability of the 6GHz band will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows Update and software updates once available.
• Slots CPU:
• - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
• Chipset:
• - 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVio/CNVio2 (Integrated WiFi/BT)
• Supports NVMe SSD as boot disks
• Storage CPU:
• - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
• Chipset:
• - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
• - 4 x SATA3 6.0 Gb/s Connectors
• Supports Intel Volume Management Device (VMD)
• RAID - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
• USB Chipset:
• - 2 x USB 3.2 Gen1 Type-C (1 Rear, 1 Front)
• - 4 x USB 3.2 Gen1 (2 Rear, 2 Front)
• - 4 x USB 2.0 (2 Rear, 2 Front)
• All USB ports support ESD Protection
• Connector - 1 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)*
• - 1 x Chassis Fan Connector (4-pin) (Smart Fan Speed Control)*
• - 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
• - 1 x 24 pin ATX Power Connector
• - 1 x 8 pin 12V Power Connector
• - 1 x Front Panel Audio Connector
• - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports)
• - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
• - 1 x Front Panel Type C USB 3.2 Gen1 Header
• CPU_FAN1 and CHA_FAN2 support the fan power up to 1A (12W).
• CHA_FAN1/WP support the fan power up to 2A (24W).
• Rear Panel I/O - 2 x Antenna Ports
• - 1 x HDMI Port
• - 1 x DisplayPort 1.4
• - 1 x USB 3.2 Gen1 Type-C Port
• - 2 x USB 3.2 Gen1 Ports
• - 2 x USB 2.0 Ports
• - 1 x RJ-45 LAN Port
• - HD Audio Jacks: Line in / Front Speaker / Microphone
• Software and UEFI **Software**
• - ASRock Motherboard Utility (A-Tuning)
• - ASRock Dragon 2.5G LAN Software*
• UEFI**
• - ASRock EZ Mode
• - ASRock Full HD UEFI
• - ASRock My Favorites in UEFI
• - ASRock Auto Driver Installer
• - ASRock Instant Flash
• - ASRock Easy RAID Installer
• These utilities can be downloaded from ASRock Live Update & APP Shop.
• Accessories - 1 x I/O Shield
• - 2 x SATA Data Cables
• - 2 x ASRock WiFi 2.4/5/6 GHz Antennas
• - 2 x Screws for M.2 Sockets
• Form Factor - Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm
• OS - Microsoft Windows 10 64-bit / 11 64-bit
• Certifications - FCC, CE
• - ErP/EuP ready (ErP/EuP ready power supply is required)
