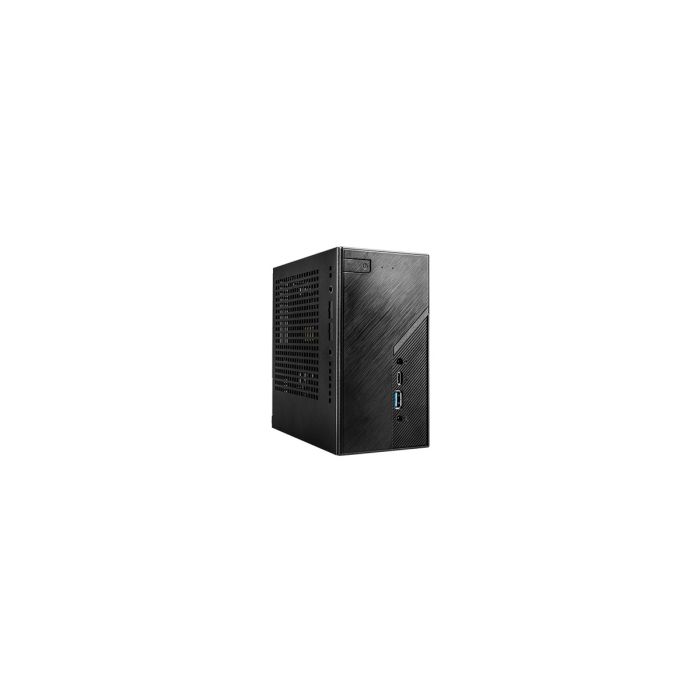

ASRock DeskMini B860 Series

At just 1.92L, DeskMini B860 delivers strong performance with support for quad display, DDR5 memory, flexible storage, and Thunderbolt 4. With NPU-enabled Intel Core Ultra processors, it supports features like auto-framing and background blur. It is ideal for smart offices, signage, and light AI workloads.

Specifications

• CPU - Supports Intel Core™ Ultra Processors (Series 2) (LGA1851), up to 65W
• Chipset - Intel Q870
• Cooler - Supports Intel CPU Cooler (Max. Height 47mm)
• Memory - Dual Channel DDR5 Memory Technology
• - 2 x DDR5 SO-DIMM Slots
• - Supports DDR5 non-ECC, un-buffered memory up to 5600
• - Supports DDR5 CSODIMM memory modules up to 7200(OC)
• - Max. capacity of system memory: 128GB
• Graphics - Intel Graphics
• Graphics Output - 2 x DisplayPort 1.4 (8K@60Hz / 4K@120Hz)
• - 1 x HDMI 2.1 (4K@120Hz)
• - 1 x Intel Thunderbolt™ 4
• Audio - Realtek ALC269 Audio Codec
• Storage - 2 x SATA 6Gb/s Ports
• - 1 x M.2 2280 Slot (M2_1) for PCIe Gen5x4 SSD
• - 1 x M.2 2280 Slot (M2_2) for PCIe Gen4x4 SSD
• RAID - Supports RAID 0 and RAID 1 for SATA storage devices
• LAN - Gigabit vPro LAN (Intel I219LM)
• WLAN - 1 x M.2 Socket (Key E), supports type 2230 Wi-Fi/BT module
• Front I/O - 1 x MIC-in
• - 1 x USB 3.2 Gen2x2 Type-C
• - 1 x USB 3.2 Gen2 Type-A Port
• - 1 x Headphone/Headset Jack
• Rear I/O - 1 x DC-In Jack
• - 1 x Intel Thunderbolt™ 4
• - 2 x USB 3.2 Gen2 Type-A Port
• - 1 x Gigabit vPro LAN
• Connectors - 2 x CPU Fan Connectors (2 x 4-pin)
• - 1 x Internal Speaker Header
• - 1 x Front Panel Header
• - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
• - 1 x Audio Header
• Accessory - 2 x SATA Data with Power Cable
• - 2 x Screws for M.2 Sockets
• - 1 x Screw for WiFi Module
• Dimension - 155 x 155 x 80 mm (1.92L)
• Security - TPM 2.0
• OS - Microsoft Windows 11 64-bit
