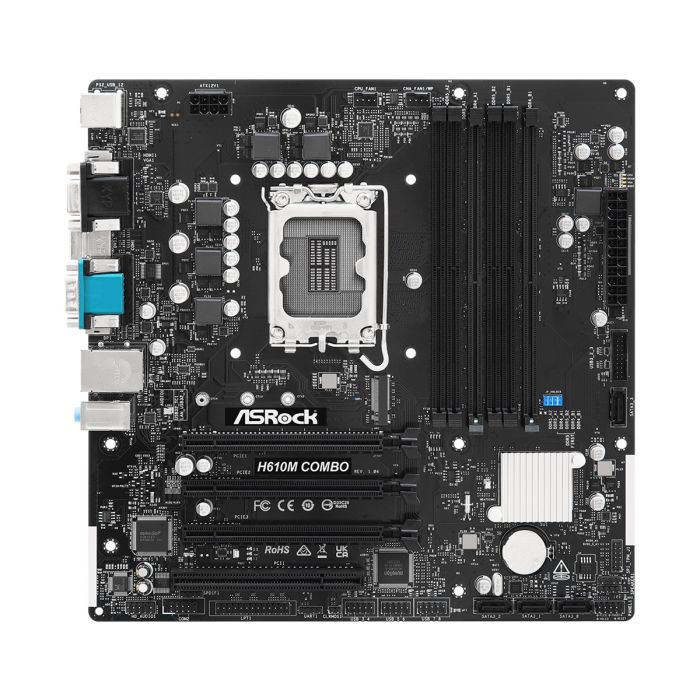

ASRock H610M COMBO

The 6 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency, giving a stable and reliable system.

Specifications

• CPU - Supports 14 th, 13 th& 12 th Gen Intel Core™ Processors (LGA1700)
• - Supports Intel Hybrid Technology
• - Supports Intel Turbo Boost Max 3.0 Technology
• Chipset - Intel H610
• Memory 4 x DDR5 DIMM Slots:
• - Dual Channel DDR5 Memory Technology
• - Supports DDR5 non-ECC*
• - Max. capacity of system memory: 96GB
• - Supports Intel Extreme Memory Profile (XMP) 3.0 2 x DDR4 DIMM Slots:
• - Dual Channel DDR4 Memory Technology
• - Supports DDR4 non-ECC*
• - Supports ECC UDIMM memory modules (operate in non-ECC mode)
• - Max. capacity of system memory: 64GB*
• - Supports Intel Extreme Memory Profile (XMP) 2.0
• 1DPC 1R Up to 4800 MHz Natively.
• BIOS - 128Mb AMI UEFI Legal BIOS with GUI support
• Graphics - Intel Xe Graphics Architecture (Gen 12)
• - Five graphics output options: eDP 1.4, D-Sub, DVI-D, HDMI and DisplayPort 1.4
• - 1 x eDP 1.4, supports max. resolution up to Full HD (1920x1080) 60Hz
• - 1 x HDMI 1.4 TMDS Compatible, supports HDCP 1.4 and max. resolution up to 4K 30Hz
• - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
• - 1 x D-Sub, supports max. resolution up to Full HD (1920x1200) 60Hz
• - 1 x DVI-D, supports max. resolution up to Full HD (1920x1200) 60Hz
• Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
• Audio - 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
• LAN - Gigabit LAN 10/100/1000 Mb/s
• - Realtek 8111H
• Slots CPU:
• - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
• Chipset:
• - 2 x PCIe 3.0 x16 Slots (PCIE2 and PCIE3), support x1 mode*
• - 1 x PCI Slot
• Supports NVMe SSD as boot disks
• Storage Chipset:
• - 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes*
• - 4 x SATA3 6.0 Gb/s Connectors**
• Supports NVMe SSD as boot disks
• If M2_1 is occupied by a SATA-type M.2 device, SATA3_0 will be disabled.
• USB Chipset:
• - 1 x USB 3.2 Gen2 Type-C (Rear)
• - 1 x USB 3.2 Gen2 Type-A (Rear)
• - 2 x USB 3.2 Gen1 Type-A (Front)
• - 8 x USB 2.0 (2 Rear, 6 Front)
• All USB ports support ESD Protection
• Connector - 1 x eDP Signal Connector
• - 1 x Print Port Header
• - 1 x COM Port Header
• - 1 x SPI TPM Header
• - 1 x Chassis Intrusion Header
• - 1 x Chassis Speaker Header
• - 1 x SPDIF Out Connector
• - 1 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)*
• - 1 x Chassis Fan Connector (4-pin) (Smart Fan Speed Control)**
• - 1 x 24 pin ATX Power Connector
• - 1 x 8 pin 12V Power Connector
• - 1 x Front Panel Audio Connector
• - 3 x USB 2.0 Headers (Support 6 USB 2.0 ports)
• - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
• - 1 x Jumper Holder
• CPU_FAN1 supports the fan power up to 1A (12W).
• CHA_FAN1/WP supports the fan power up to 2A (24W).
• Rear Panel I/O - 1 x PS/2 Mouse/Keyboard Port
• - 1 x Serial Port: COM1
• - 1 x D-Sub Port
• - 1 x DVI-D Port
• - 1 x HDMI Port
• - 1 x DisplayPort 1.4
• - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
• - 1 x USB 3.2 Gen2 Type-C Port
• - 2 x USB 2.0 Ports
• - 1 x RJ-45 LAN Port
• - HD Audio Jacks: Line in / Front Speaker / Microphone
• Unique Feature **Superb Productivity**
• - Dual Channel DDR5
• Rock-Solid Durability**
• - 3+1 Power Phase
• EZ Troubleshooter**
• - ASRock Post Status Checker
• Accessories - 1 x I/O Shield
• - 2 x SATA Data Cables
• - 1 x Screw for M.2 Socket
• Form Factor - Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
• OS - Microsoft Windows 10 64-bit / 11 64-bit
• Certifications - FCC, CE
• - ErP/EuP ready (ErP/EuP ready power supply is required)
