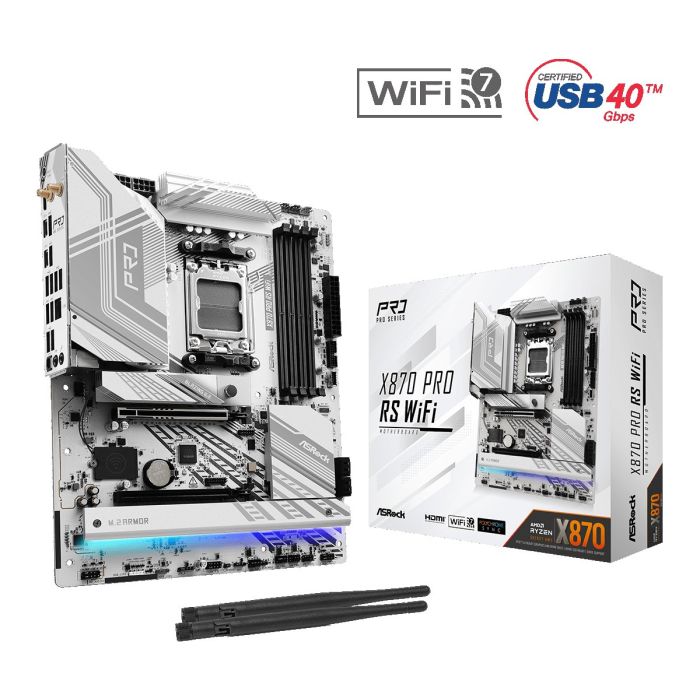

ASRock X870 Pro RS WiFi

Modern and futuristic, with the attractive specifications and perfect balance, the Race Sport (RS) Edition is the evolution of the most popular PRO series motherboard.

Specifications

• Supports AMD Ryzen™ 9000, 8000 and 7000 Series Processors
• 14+2+1 Phase Power Design, 80A Dr.MOS for VCore+SOC
• 4 x DDR5 DIMMs
• Supports Dual Channel, up to 8000+ (OC)
• 1 PCIe 5.0 x16, 1 PCIe 4.0 x16
• Graphics Output Options: 2 USB4 Type-C, 1 HDMI
• Realtek ALC1220 7.1 CH HD Audio Codec, Nahimic Audio
• 1 Blazing M.2 (PCIe Gen5x4)
• 1 Hyper M.2 (PCIe Gen4x4)
• 1 Ultra M.2 (PCIe Gen3x4 & SATA3)
• 4 SATA3
• 2 USB4 Type-C (Rear)
• 1 USB 3.2 Gen2x2 Type-C (Front)
• 6 USB 3.2 Gen1 (4 Rear, 2 Front)
• 9 USB 2.0 (6 Rear, 3 Front)
• Realtek 2.5G LAN
• 802.11be WiFi 7 + Bluetooth
• Supports Toolless Multi-Layer M.2 Heatsink, M.2 Bottom Heatsink
