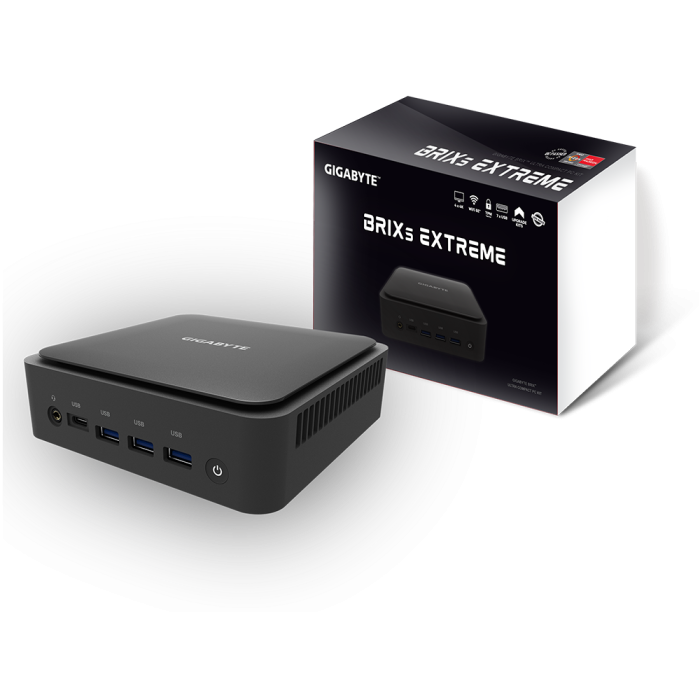

GB-BER7HS-5700
- 體積尺寸: 52 mm x 134.2 mm x 139.1 mm (2.0" x 5.3" x 5.4")
- 主機板尺寸: 125mm x 128.8 mm (4.9' x 5.1")
- 處理器: AMD Ryzen™ 5 5700U, 4.3 / 1.8 GHz, 8C/16T Core, 12MB Cache | Mobile Processor with Radeon™ Graphics , 15W, Zen 2
- 記憶體: 2 x SO-DIMM DDR4 slots, support up to 3200MHz | Max. 64GB
- LAN: 2.5G LAN (Realtek 8125)
- Wifi Card: AMD RZ608 Wifi 6 /BT 5.2 Module
- Audio: Realtek ALC897 HD audio
- Video: AMD Radeon™ Graphics
- HDMI 解析度(最大值): 2x HDMI2.0a with HDCP 2.2 | Max Resolution 3840x2160@60Hz
- Mini DP 解析度(最大值): Mini DP /USB Type-C DP supports : DP1.4 | Max Resolution 3840x2160@60Hz
- 儲存裝置: 1 x PCI-e Gen3 x 4 /SATA M.2 2280 slot | 2 x PCIe Gen3 x 1 / SATA M.2 2280 slots (M.2 Kit) | 1 x 2.5" HDD/SSD, 7.0mm thick (1 x 6 Gbps SATA 3)(Removing above dual M.2 kit before installation)
- 擴充插槽: 1 x PCIe M.2 NGFF 2230 A-E key slot occupied by the WiFi+BT card
- 前置 I/O: 1 x Power Button | 1 x USB 3.2 type C (Gen2) | 3 x USB 3.2 type A (Gen2) | 1 x head phone jack with MIC
- 背板 I/O: 2 x HDMI(2.0b) | 1 x mDP | 1 x USB 3.2 type C (Gen2) w/ DP alt mode | 2 x USB 2.0 type A (Gen 1) | 1 x RJ45 | 1 x DC-In | 1 x Kensington lock slot
- TPM: Integrate TPM module* (in selected regions /countries)
- 電源供應: Input: AC 100-240V | Output: DC 19.5V / 6.92A, 135W
- VESA 支援: Mounting Bracket Included
- Support OS: Windows 11 64Bit | Windows 10 64bit
- 環境操作溫度: Operating Temperature 0°C to 35°C | Storage Temperature -20°C to +60°C
- 體積尺寸: 52 mm x 134.2 mm x 139.1 mm (2.0" x 5.3" x 5.4")
- 主機板尺寸: 125mm x 128.8 mm (4.9' x 5.1")
- 處理器: AMD Ryzen™ 5 5700U, 4.3 / 1.8 GHz, 8C/16T Core, 12MB Cache | Mobile Processor with Radeon™ Graphics , 15W, Zen 2
- 記憶體: 2 x SO-DIMM DDR4 slots, support up to 3200MHz | Max. 64GB
- LAN: 2.5G LAN (Realtek 8125)
- Wifi Card: AMD RZ608 Wifi 6 /BT 5.2 Module
- Audio: Realtek ALC897 HD audio
- Video: AMD Radeon™ Graphics
- HDMI 解析度(最大值): 2x HDMI2.0a with HDCP 2.2 | Max Resolution 3840x2160@60Hz
- Mini DP 解析度(最大值): Mini DP /USB Type-C DP supports : DP1.4 | Max Resolution 3840x2160@60Hz
- 儲存裝置: 1 x PCI-e Gen3 x 4 /SATA M.2 2280 slot | 2 x PCIe Gen3 x 1 / SATA M.2 2280 slots (M.2 Kit) | 1 x 2.5" HDD/SSD, 7.0mm thick (1 x 6 Gbps SATA 3)(Removing above dual M.2 kit before installation)
- 擴充插槽: 1 x PCIe M.2 NGFF 2230 A-E key slot occupied by the WiFi+BT card
- 前置 I/O: 1 x Power Button | 1 x USB 3.2 type C (Gen2) | 3 x USB 3.2 type A (Gen2) | 1 x head phone jack with MIC
- 背板 I/O: 2 x HDMI(2.0b) | 1 x mDP | 1 x USB 3.2 type C (Gen2) w/ DP alt mode | 2 x USB 2.0 type A (Gen 1) | 1 x RJ45 | 1 x DC-In | 1 x Kensington lock slot
- TPM: Integrate TPM module* (in selected regions /countries)
- 電源供應: Input: AC 100-240V | Output: DC 19.5V / 6.92A, 135W
- VESA 支援: Mounting Bracket Included
- Support OS: Windows 11 64Bit | Windows 10 64bit
- 環境操作溫度: Operating Temperature 0°C to 35°C | Storage Temperature -20°C to +60°C
