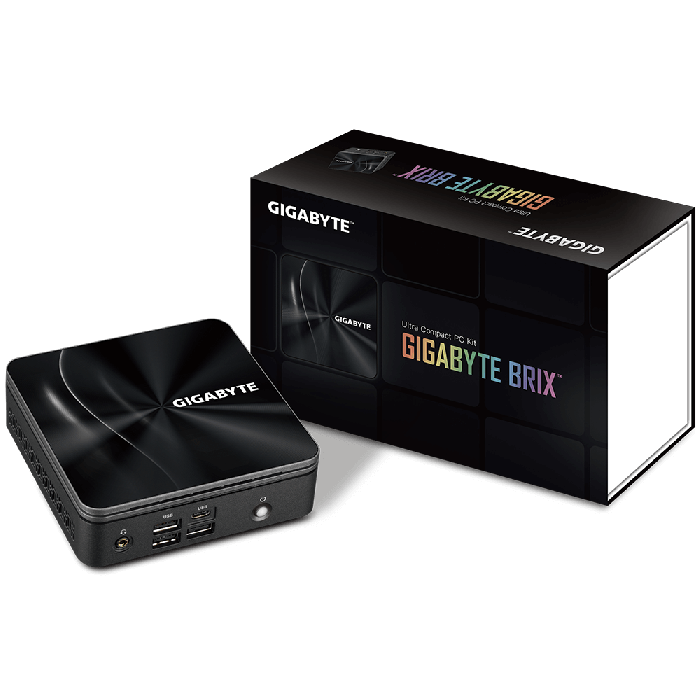

GB-BRR7-4800

有貨

SKU

Mini-PcBarebone_GB-BRR7-4800-rev-10

率先評論此產品

報價訂購

GB-BRR7-4800

跳到結尾的圖片庫

跳轉到影像庫的開頭

體積尺寸: 3‎4.7 mm x 119.5 mm x 119.5 mm (1.37" x 4.7" x 4.7")
主機板尺寸: 105 x 110 mm
處理器: AMD RYZEN R7-4800U 1.8G~4.2G Turbo, 8C/16T Core, 12MB L3 Cache | AMD Radeon GPU 1750Mhz , 15W
記憶體: 2 x SO-DIMM DDR4 slots | 3200MHz | Max. 64GB
LAN: 2.5G LAN (Realtek 8125)
Wifi Card: Intel WiFi6 AX200 / BT 5.2
Audio: Realtek ALC255
Video: AMD Radeon™ Graphics
HDMI 解析度(最大值): HDMI2.0a ws HDCP 2.2 | 3840x2160@60Hz
儲存裝置: 1 x M.2 slot (2280_storage) | PCIe Gen3 X4 /SATA
擴充插槽: 1 x PCIe M.2 NGFF 2230 A-E key slot occupied by the WiFi+BT card
前置 I/O: 1 x Power Button | 1 x USB 3.2 type C (Gen2) w/ DP alt mode | 3 x USB type A 3.2 (Gen1) | 1 x head phone jack with MIC
背板 I/O: 1 x HDMI(2.0a) | 1 x mDP | 1 x USB 3.2 type C (Gen2) w/ DP alt mode | 2 x USB 3.2 type A (Gen 1) | 1 x RJ45 | 1 x DC-In
側邊 I/O: 1 x Kensington lock slot
電源供應: Input: AC 100-240V | Output: DC 19V/4.74A, 90W
Support OS: Win10 64bit
環境操作溫度: Operating Temperature 0°C to 35°C | Storage Temperature -20°C to +60°C
體積尺寸: 3‎4.7 mm x 119.5 mm x 119.5 mm (1.37" x 4.7" x 4.7")
主機板尺寸: 105 x 110 mm
處理器: AMD RYZEN R7-4800U 1.8G~4.2G Turbo, 8C/16T Core, 12MB L3 Cache | AMD Radeon GPU 1750Mhz , 15W
記憶體: 2 x SO-DIMM DDR4 slots | 3200MHz | Max. 64GB
LAN: 2.5G LAN (Realtek 8125)
Wifi Card: Intel WiFi6 AX200 / BT 5.2
Audio: Realtek ALC255
Video: AMD Radeon™ Graphics
HDMI 解析度(最大值): HDMI2.0a ws HDCP 2.2 | 3840x2160@60Hz
儲存裝置: 1 x M.2 slot (2280_storage) | PCIe Gen3 X4 /SATA
擴充插槽: 1 x PCIe M.2 NGFF 2230 A-E key slot occupied by the WiFi+BT card
前置 I/O: 1 x Power Button | 1 x USB 3.2 type C (Gen2) w/ DP alt mode | 3 x USB type A 3.2 (Gen1) | 1 x head phone jack with MIC
背板 I/O: 1 x HDMI(2.0a) | 1 x mDP | 1 x USB 3.2 type C (Gen2) w/ DP alt mode | 2 x USB 3.2 type A (Gen 1) | 1 x RJ45 | 1 x DC-In
側邊 I/O: 1 x Kensington lock slot
電源供應: Input: AC 100-240V | Output: DC 19V/4.74A, 90W
Support OS: Win10 64bit
環境操作溫度: Operating Temperature 0°C to 35°C | Storage Temperature -20°C to +60°C
