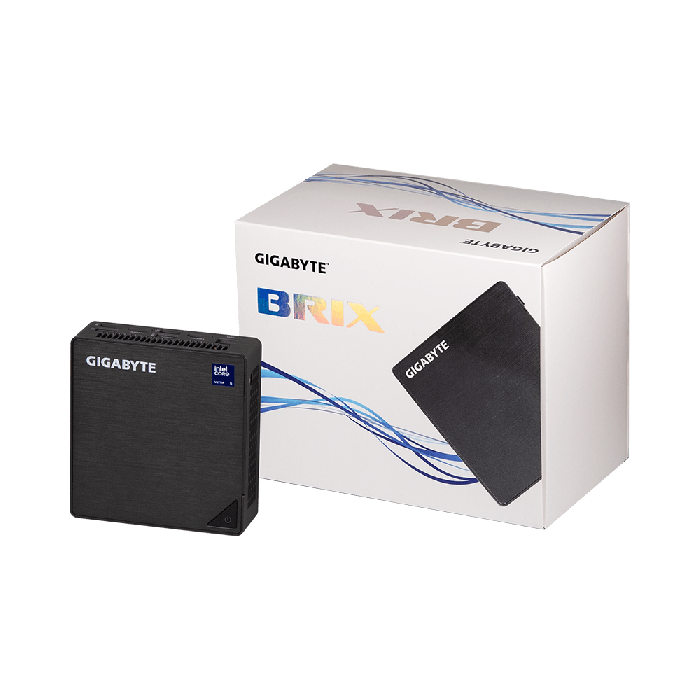

GB-BTIP-N250
- 體積尺寸: 113 mm x 116.52 mm x 56.22 mm
- 主機板尺寸: 108 mm x 103 mm
- 處理器: Intel | ® | Processor N250 | 4C, up to 3.8 GHz, 6W
- 記憶體: 1 x SO-DIMM DDR5 slot, support up to 4800MHz | Max. 16GB
- LAN: GbE LAN (Realtek | ® | RTL8111H)
- Wifi Card: AW-CB515NF | Wi-Fi 5 ; 802.11 a/b/g/n/ac WLAN 1T1R with Bluetooth 5.0
- 繪圖晶片: Intel | ® | Graphics 32EUs | 1 x HDMI v2.0, 4096x2160@60Hz | 1 x Rear IO USB type C ALT (DisplayPort v1.4), 3840x2160@60Hz | 1 x Front IO USB type C ALT (DisplayPort v1.4), 3840x2160@60Hz
- Audio: Realtek® ALC897
- 儲存裝置: 1 x 2.5'' slot for SATA HDD/SSD
- 擴充插槽: 1 x M.2 M Key 2280 slot (PCIe Gen 3x2) | 1 x M.2 E key 2230 slot (For Wi-Fi + Bluetooth card)
- 前置 I/O: 1 x Power button | 1 x USB 3.2 Gen2 Type-A | 1 x USB 3.2 Gen2 with Type-C (ALT mode, DP+USB) | 1 x Headphone | 1 x Microphone
- 背板 I/O: 1 x HDMI | 1 x RJ45 | 2 x USB 3.2 Gen2 Type-A | 1 x USB 3.2 Gen2 Type-C (ALT mode, DP +USB) | 1 x Wire Clamp Screw Hole
- Left I/O: 1 x DC-In
- Right I/O: 1 x Kensington lock slot
- 電源供應: Input: AC 100-240V | Output: DC 19V / 3.42A, 65W
- VESA 支援: VESA support | Supports 75 x 75 and 100 x 100 mm
- Support OS: Windows 11 64bits | Fedora 40 | Ubuntu 24.04.2 LTS | Ubuntu 24.04.3 LTS | Ubuntu 24.10 | Ubuntu 25.04
- 環境操作溫度: System Environment Operating Temperature: 0°C to +35°C | System Storage Temperature: -20°C to +60°C
- 體積尺寸: 113 mm x 116.52 mm x 56.22 mm
- 主機板尺寸: 108 mm x 103 mm
- 處理器: Intel | ® | Processor N250 | 4C, up to 3.8 GHz, 6W
- 記憶體: 1 x SO-DIMM DDR5 slot, support up to 4800MHz | Max. 16GB
- LAN: GbE LAN (Realtek | ® | RTL8111H)
- Wifi Card: AW-CB515NF | Wi-Fi 5 ; 802.11 a/b/g/n/ac WLAN 1T1R with Bluetooth 5.0
- 繪圖晶片: Intel | ® | Graphics 32EUs | 1 x HDMI v2.0, 4096x2160@60Hz | 1 x Rear IO USB type C ALT (DisplayPort v1.4), 3840x2160@60Hz | 1 x Front IO USB type C ALT (DisplayPort v1.4), 3840x2160@60Hz
- Audio: Realtek® ALC897
- 儲存裝置: 1 x 2.5'' slot for SATA HDD/SSD
- 擴充插槽: 1 x M.2 M Key 2280 slot (PCIe Gen 3x2) | 1 x M.2 E key 2230 slot (For Wi-Fi + Bluetooth card)
- 前置 I/O: 1 x Power button | 1 x USB 3.2 Gen2 Type-A | 1 x USB 3.2 Gen2 with Type-C (ALT mode, DP+USB) | 1 x Headphone | 1 x Microphone
- 背板 I/O: 1 x HDMI | 1 x RJ45 | 2 x USB 3.2 Gen2 Type-A | 1 x USB 3.2 Gen2 Type-C (ALT mode, DP +USB) | 1 x Wire Clamp Screw Hole
- Left I/O: 1 x DC-In
- Right I/O: 1 x Kensington lock slot
- 電源供應: Input: AC 100-240V | Output: DC 19V / 3.42A, 65W
- VESA 支援: VESA support | Supports 75 x 75 and 100 x 100 mm
- Support OS: Windows 11 64bits | Fedora 40 | Ubuntu 24.04.2 LTS | Ubuntu 24.04.3 LTS | Ubuntu 24.10 | Ubuntu 25.04
- 環境操作溫度: System Environment Operating Temperature: 0°C to +35°C | System Storage Temperature: -20°C to +60°C
