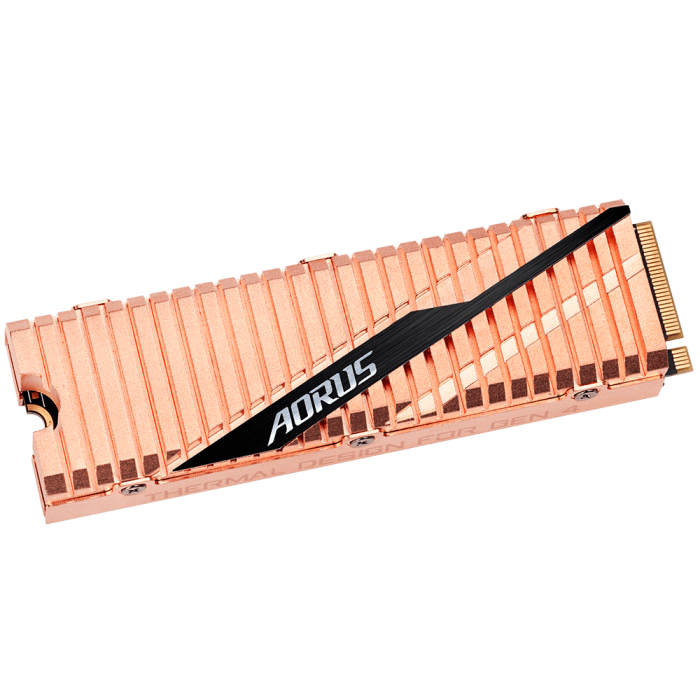

AORUS NVMe Gen4 SSD 500GB
AORUS NVMe Gen4 SSD 500GB
- Interface: PCI-Express 4.0x4, NVMe 1.3
- Form Factor: M.2 2280
- Total Capacity: 500GB
- NAND: 3D TLC Toshiba BiCS4
- External DDR Cache: DDR4 512MB
- Sequential Read speed: Up to 5000 MB/s
- Sequential Write speed: Up to 2500 MB/s
- Random Read IOPS: up to 400k
- Random Write IOPS: up to 550k
- Dimension: 80.5 x 11.25 x 23.5 mm
- Mean time between failure (MTBF): 1.77 million hours
- Power Consumption (Active): Average: R : 5.9W; W : 4.5W
- Power Consumption (Idle): 13.21mW
- Temperature (Operating): 0°C to 70°C
- Temperature (Storage): -40°C to 85°C
- Warranty: 1. Limited 5-years or 850TBW. | | 2. Limited warranty based on 5 years or 850TBW, whichever comes first. (*TBW is evaluated by JEDEC workload standard. ) | *TBW (Terabyte Written): Terabytes Written is the total amount of data that can be written into a SSD before it is likely to fail. | | 3. When the usage of an NVME SSD as indicated by the "Percentage Used" (SMART ID: 05) in SMART page of "GIGABYTE SSD toolbox" reaches 100 means out of warranty. (A new unused product will show the number of 0)
- Note: • Test system configuration: configuration may vary by models, we will choose the latest platform for verification. | | • Performance may vary based on SSD's firmware version and system hardware & configuration. Sequential performance measurements based on CrystalDiskMark and IOmeter 1.1.0. | | • Speeds based on internal testing. Actual performance may vary. | | • 1GB = 1 billion bytes. Actual useable capacity may vary.
- Interface: PCI-Express 4.0x4, NVMe 1.3
- Form Factor: M.2 2280
- Total Capacity: 500GB
- NAND: 3D TLC Toshiba BiCS4
- External DDR Cache: DDR4 512MB
- Sequential Read speed: Up to 5000 MB/s
- Sequential Write speed: Up to 2500 MB/s
- Random Read IOPS: up to 400k
- Random Write IOPS: up to 550k
- Dimension: 80.5 x 11.25 x 23.5 mm
- Mean time between failure (MTBF): 1.77 million hours
- Power Consumption (Active): Average: R : 5.9W; W : 4.5W
- Power Consumption (Idle): 13.21mW
- Temperature (Operating): 0°C to 70°C
- Temperature (Storage): -40°C to 85°C
- Warranty: 1. Limited 5-years or 850TBW. | | 2. Limited warranty based on 5 years or 850TBW, whichever comes first. (*TBW is evaluated by JEDEC workload standard. ) | *TBW (Terabyte Written): Terabytes Written is the total amount of data that can be written into a SSD before it is likely to fail. | | 3. When the usage of an NVME SSD as indicated by the "Percentage Used" (SMART ID: 05) in SMART page of "GIGABYTE SSD toolbox" reaches 100 means out of warranty. (A new unused product will show the number of 0)
- Note: • Test system configuration: configuration may vary by models, we will choose the latest platform for verification. | | • Performance may vary based on SSD's firmware version and system hardware & configuration. Sequential performance measurements based on CrystalDiskMark and IOmeter 1.1.0. | | • Speeds based on internal testing. Actual performance may vary. | | • 1GB = 1 billion bytes. Actual useable capacity may vary.
