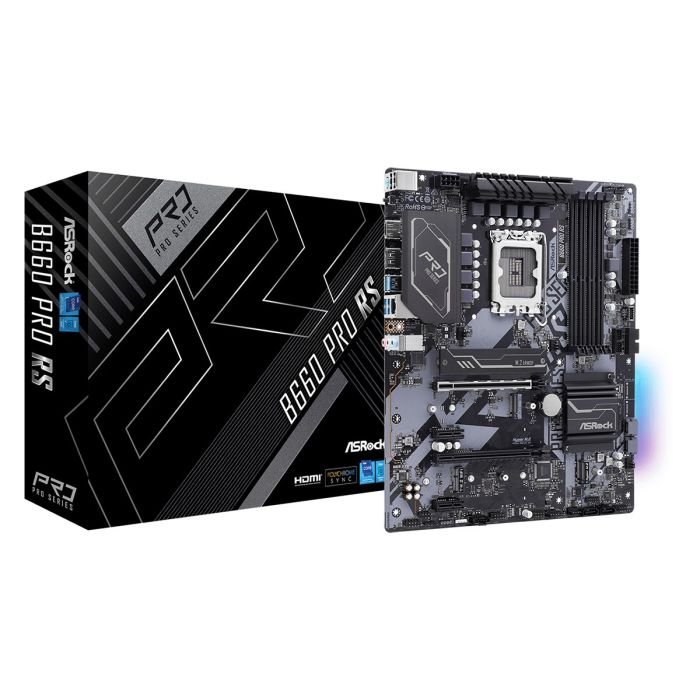

ASRock B660 Pro RS

Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.

Specifications

• CPU - Supports 14 th, 13 th& 12 th Gen Intel Core™ Processors (LGA1700)
• - Digi Power design
• - 8 Power Phase design
• - Supports Intel Hybrid Technology
• - Supports Intel Turbo Boost Max 3.0 Technology
• Chipset - Intel B660
• Memory - Dual Channel DDR4 Memory Technology
• - 4 x DDR4 DIMM Slots
• - Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC)*
• - Supports ECC UDIMM memory modules (operate in non-ECC mode)
• - Max. capacity of system memory: 128GB
• - Supports Intel Extreme Memory Profile (XMP) 2.0
• Supports DDR4 3200 natively.
• BIOS - 128Mb AMI UEFI Legal BIOS with multilingual GUI support
• - ACPI 6.0 Compliant wake up events
• - SMBIOS 2.7 Support
• - CPU Core/Cache, CPU GT, DRAM, VDD_IMC, VCCIN AUX, +1.05V PROC, +1.8V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustment
• Graphics - Intel Xe Graphics Architecture (Gen 12)
• - Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers
• - Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
• - Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz
• - Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports
• Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
• Audio - 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
• - Supports Surge Protection
• - Nahimic Audio
• LAN - Gigabit LAN 10/100/1000 Mb/s
• - Giga PHY Intel I219V
• - Supports Wake-On-LAN
• - Supports Lightning/ESD Protection
• - Supports Energy Efficient Ethernet 802.3az
• - Supports UEFI PXE
• Slots CPU:
• - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
• Chipset:
• - 1 x PCIe 3.0 x16 Slot (PCIE3), supports x4 mode*
• - 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE4)*
• - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVi (Integrated WiFi/BT)
• - Supports AMD CrossFire™
• Supports NVMe SSD as boot disks
• Storage CPU:
• - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
• Chipset:
• - 1 x M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x2 (16 Gb/s) modes*
• - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280/22110 PCIe Gen4x4 (64 Gb/s) mode*
• - 4 x SATA3 6.0 Gb/s Connectors**
• Supports Intel Optane™ Memory H Series (M2_3 only)
• If M2_2 is occupied by a SATA-type M.2 device, SATA3_0 will be disabled.
• RAID - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
• Connector - 1 x COM Port Header
• - 1 x SPI TPM Header
• - 1 x Chassis Intrusion and Speaker Header
• - 1 x RGB LED Header*
• - 3 x Addressable LED Headers**
• - 1 x CPU Fan Connector (4-pin)***
• - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
• - 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
• - 1 x 24 pin ATX Power Connector
• - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
• - 1 x Front Panel Audio Connector
• - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)
• - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
• - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection)
• - 1 x Front Panel Type C USB 3.2 Gen1 Header (Supports ESD Protection)
• Supports in total up to 12V/3A, 36W LED Strip
• Support in total up to 5V/3A, 15W LED Strip
• The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
• The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
• The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
• CPU_FAN2/WP and CHA_FAN1~5/WP can auto detect if 3-pin or 4-pin fan is in use.
• Rear Panel I/O - 2 x Antenna Mounting Points
• - 1 x PS/2 Mouse/Keyboard Port
• - 1 x HDMI Port
• - 1 x DisplayPort 1.4
• - 4 x USB 3.2 Gen1 Ports (ASMedia ASM1074 hub) (Supports ESD Protection)
• - 2 x USB 2.0 Ports (Supports ESD Protection)
• - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
• - 1 x BIOS Flashback Button
• - HD Audio Jacks: Line in / Front Speaker / Microphone
• Software and UEFI **Software**
• - ASRock Motherboard Utility (A-Tuning)
• - ASRock Polychrome SYNC
• UEFI**
• - ASRock EZ Mode
• - ASRock Full HD UEFI
• - ASRock My Favorites in UEFI
• - ASRock Instant Flash
• - ASRock Easy RAID Installer
• These utilities can be downloaded from ASRock Live Update & APP Shop.
• Accessories - I/O Shield
• - 2 x SATA Data Cables
• - 4 x Screws for M.2 Sockets
• - 1 x Standoff for M.2 Socket
• Hardware Monitor - Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans
• - Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans
• - Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans
• - CASE OPEN detection
• - Voltage monitoring: CPU Vcore, DRAM, VCCIN AUX, +1.05V PROC, +1.05V PCH, +0.82V PCH, VCCSA, +12V, +5V, +3.3V
• Form Factor - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
• - Solid Capacitor design
• OS - Microsoft Windows 10 64-bit / 11 64-bit
• Certifications - FCC, CE
• - ErP/EuP ready (ErP/EuP ready power supply is required)
