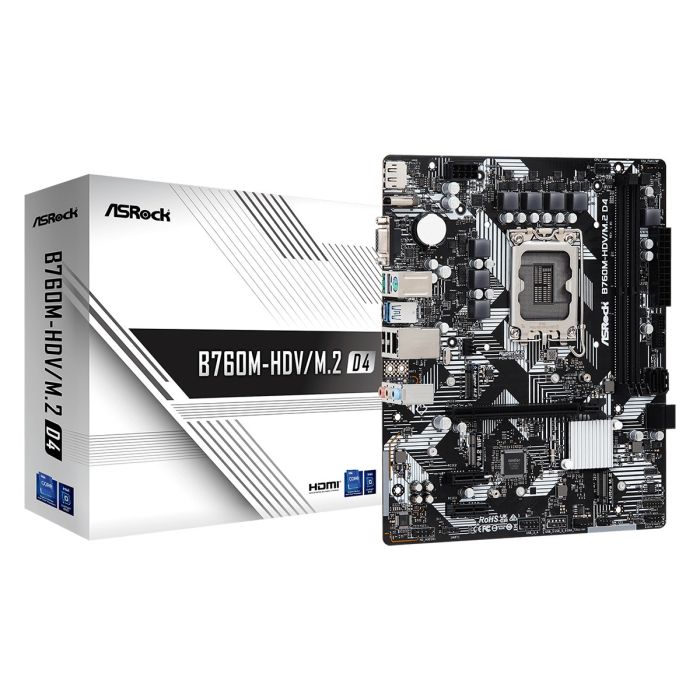

ASRock B760M-HDV/M.2 D4

Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.

Specifications

• CPU - Supports 14 th, 13 th& 12 th Gen Intel Core™ Processors (LGA1700)
• - Supports Intel Hybrid Technology
• - Supports Intel Turbo Boost Max 3.0 Technology
• - Supports Intel Thermal Velocity Boost (TVB)
• - Supports Intel Adaptive Boost Technology (ABT)
• Chipset - Intel B760
• Memory - Dual Channel DDR4 Memory Technology
• - 2 x DDR4 DIMM Slots
• - Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC)*
• - Supports ECC UDIMM memory modules (operate in non-ECC mode)
• - Max. capacity of system memory: 64GB*
• - Supports Intel Extreme Memory Profile (XMP) 2.0
• 1DPC 1R Up to 5333+ MHz (OC), 3200 MHz Natively.
• BIOS - 128Mb AMI UEFI Legal BIOS with GUI support
• Graphics - Intel Xe Graphics Architecture (Gen 12)
• - 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
• - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
• - 1 x D-Sub, supports max. resolution up to Full HD (1920x1080) 60Hz
• Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
• Audio - 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec)
• LAN - Gigabit LAN 10/100/1000 Mb/s
• - Realtek 8111H
• Slots **CPU:**
• - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
• Chipset:**
• - 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)*
• - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
• Supports NVMe SSD as boot disks
• Storage **CPU:**
• - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
• Chipset:**
• - 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes*
• - 4 x SATA3 6.0 Gb/s Connectors**
• Supports Intel Volume Management Device (VMD)
• If M2_2 is occupied by a SATA-type M.2 device, SATA3_3 will be disabled.
• RAID - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
• USB - 1 x USB 3.2 Gen1 Type-C (Rear)
• - 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front)
• - 5 x USB 2.0 (2 Rear, 3 Front)
• All USB ports support ESD Protection
• Connector - 1 x SPI TPM Header
• - 1 x Chassis Intrusion and Speaker Header
• - 1 x CPU Fan Connector (4-pin)*
• - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
• - 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***
• - 1 x 24 pin ATX Power Connector
• - 1 x 8 pin 12V Power Connector
• - 1 x Front Panel Audio Connector
• - 2 x USB 2.0 Headers (Support 3 USB 2.0 ports)
• - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
• CPU_FAN1 supports the fan power up to 1A (12W).
• CPU_FAN2/WP supports the fan power up to 2A (24W).
• CHA_FAN1~2/WP support the fan power up to 2A (24W).
• CPU_FAN2/WP and CHA_FAN1~2/WP can auto detect if 3-pin or 4-pin fan is in use.
• Rear Panel I/O - 2 x Antenna Mounting Points
• - 1 x PS/2 Mouse/Keyboard Port
• - 1 x D-Sub Port
• - 1 x HDMI Port
• - 1 x DisplayPort 1.4
• - 1 x USB 3.2 Gen1 Type-C Port
• - 3 x USB 3.2 Gen1 Type-A Ports
• - 2 x USB 2.0 Ports
• - 1 x RJ-45 LAN Port
• - HD Audio Jacks: Line in / Front Speaker / Microphone
• Software and UEFI **Software**
• - ASRock Motherboard Utility (A-Tuning)
• UEFI**
• - ASRock EZ Mode
• - ASRock Full HD UEFI
• - ASRock My Favorites in UEFI
• - ASRock Auto Driver Installer
• - ASRock Instant Flash
• - ASRock Easy RAID Installer
• These utilities can be downloaded from ASRock Live Update & APP Shop.
• Accessories - 1 x User Manual
• - 1 x I/O Shield
• - 2 x SATA Data Cables
• - 3 x Screws for M.2 Sockets
• Form Factor - Micro ATX Form Factor: 9.6-in x 7.9-in, 24.4 cm x 20.1 cm
• OS - Microsoft Windows 10 64-bit / 11 64-bit
• Certifications - FCC, CE
• - ErP/EuP ready (ErP/EuP ready power supply is required)
