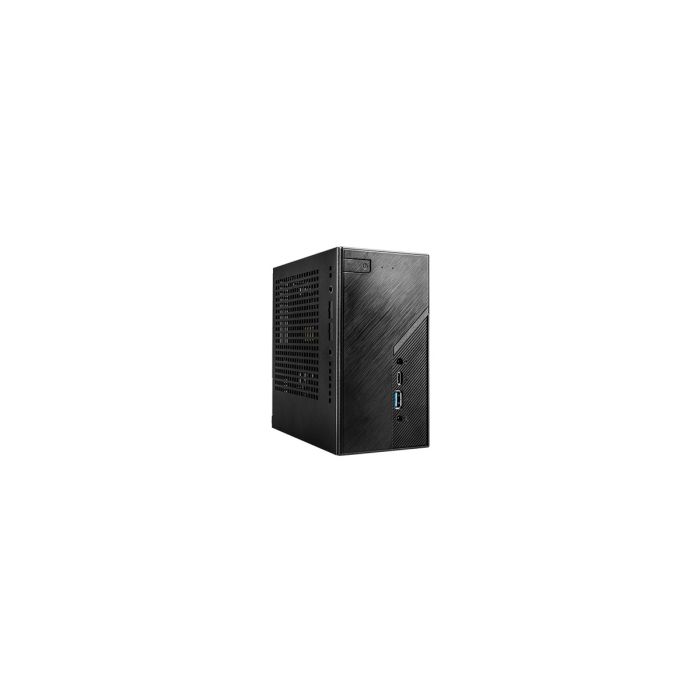

ASRock DeskMini B760 Series

DeskMini B760 adopts LGA1700 CPU socket which supports the latest 13th Gen Intel Core Processors for delivering ultimate computing performance within a tiny PC.

Specifications

• CPU - Supports 14th, 13th & 12th Gen Intel Core™ Processors (LGA1700), Max. TDP 65W
• Chipset - Intel B760
• Cooler - Supports Intel CPU Cooler (Max. Height 47mm)
• Memory - Supports 2 x SO-DIMM DDR4-3200MHz, Max. 64GB (non-ECC)
• Graphics - Supports 2 x SO-DIMM DDR4-3200MHz, Max. 64GB (non-ECC)
• Supports up to 4 displays simultaneously
• Audio - Realtek ALC269 Audio Codec
• Storage - 2 x SATA3 6Gb 2.5-inch 7mm/9.5mm Hard Drive (RAID 0/1)*
• - 1 x Blazing M.2 Socket (M2_1), support type 2280 PCIe Gen5x4 (128 Gb/s) mode**
• - 1 x Hyper M.2 Socket (M2_2), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode**
• Supports Intel Volume Management Device (VMD)
• Supports NVMe SSD as boot disks
• LAN - 2.5 Gigabit LAN (Dragon RTL8125BG)
• WLAN - 1 x M.2 Socket (Key E), supports type 2230 Wi-Fi/BT module and Intel CNVi (Integrated Wi-Fi/BT)
• Front I/O - 1 x MIC-In
• - 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s) (Supports ESD Protection)
• - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection)
• - 1 x Head Phone with MIC Jack
• Rear I/O - 1 x DC-In Jack (Compatible with the 19V power adapter)
• - 1 x D-Sub Port
• - 1 x HDMI Port
• - 1 x DisplayPort 1.4
• - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports USB Type-C Alt Mode)
• - 2 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection)
• - 2 x USB 2.0 Ports (Supports ESD Protection)
• - 1 x RJ-45 LAN Port with LED
• Connectors - 1 x USB 2.0 Header
• - 1 x Front Panel Header
• - 2 x 4-Pin fan connectors (CPU, SYS)
• - 1 x Internal Speaker Header (4-Pin)
• - 1 x Audio Header (4-Pin)
• Accessory - 2 x SATA Data with Power Cable
• - 1 x 120W/19V adapter
• - 1 x Screws Pack
• - 1 x Intel AC-3168 Wi-Fi Kit
• Dimension - 155 x 155 x 80 mm (1.92L)
• OS - Microsoft Windows 10 64-bit / 11 64-bit
