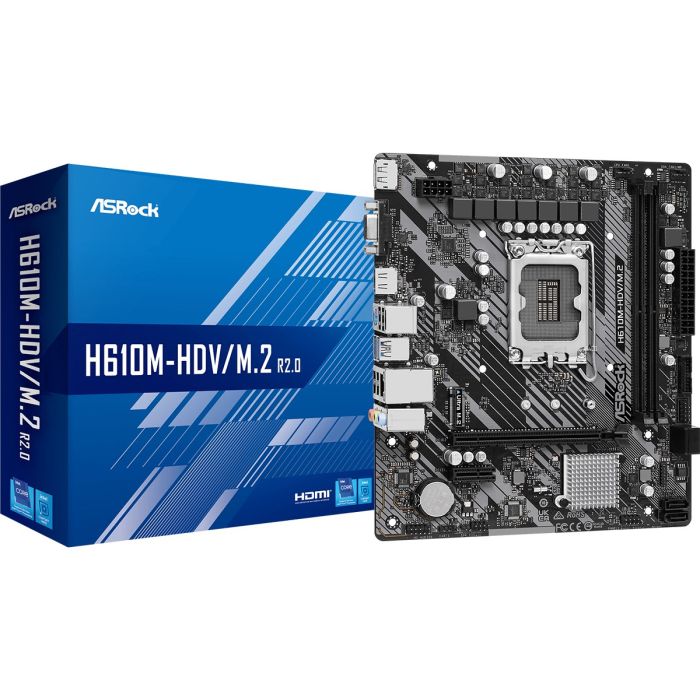

ASRock H610M-HDV/M.2 R2.0

This motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, providing CPU a smooth and efficient power source which expands the lifespan and stability of the motherboard.

Specifications

• CPU - Supports 14 th, 13 th& 12 th Gen Intel Core™ Processors (LGA1700)
• - 6+1+1 Power Phase design
• - Supports Intel Hybrid Technology
• - Supports Intel Turbo Boost Max 3.0 Technology
• Chipset - Intel H610
• Memory - Dual Channel DDR4 Memory Technology
• - 2 x DDR4 DIMM Slots
• - Supports DDR4 non-ECC, un-buffered memory up to 3200
• - Supports ECC UDIMM memory modules (operate in non-ECC mode)
• - Max. capacity of system memory: 64GB*
• - Supports Intel Extreme Memory Profile (XMP) 2.0
• Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation.
• BIOS - 128Mb AMI UEFI Legal BIOS with multilingual GUI support
• - ACPI 6.0 Compliant wake up events
• - SMBIOS 2.7 Support
• - CPU Core/Cache, CPU Core/Cache Load-Line, CPU GT, CPU GT Load-Line, DRAM, +0.82V PCH, +1.05V PCH, VCCIN AUX, +1.8V PROC, +1.05V PROC Voltage Multi-adjustment
• Graphics - Intel X e Graphics Architecture (Gen 12)
• - Three graphics output options: D-Sub, HDMI and DisplayPort 1.4
• - Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
• - Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz
• - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
• - Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports
• Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
• Audio - 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
• - Supports Surge Protection
• LAN - PCIE x1 Gigabit LAN 10/100/1000 Mb/s
• - 1 x Realtek RTL8111H
• - Supports Wake-On-LAN
• - Supports Lightning/ESD Protection
• - Supports Energy Efficient Ethernet 802.3az
• - Supports PXE
• Slots CPU:
• - 1 x PCIe 4.0 x16 Slot (PCIE2), supports x16 mode*
• Chipset:
• - 1 x PCIe 3.0 x1 Slot (PCIE1)
• Supports NVMe SSD as boot disks
• Storage Chipset:
• - 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2242/2260/2280 PCIe Gen3x4 (32 Gb/s) mode*
• - 4 x SATA3 6.0 Gb/s Connectors
• Supports NVMe SSD as boot disks
• Connector - 1 x SPI TPM Header
• - 1 x Chassis Intrusion and Speaker Header
• - 1 x CPU Fan Connector (4-pin)*
• - 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
• - 1 x 24 pin ATX Power Connector
• - 1 x 8 pin 12V Power Connector
• - 1 x Front Panel Audio Connector
• - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
• - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
• The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
• The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
• Rear Panel I/O - 1 x PS/2 Mouse/Keyboard Port
• - 1 x D-Sub Port
• - 1 x HDMI Port
• - 1 x DisplayPort 1.4
• - 2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
• - 4 x USB 2.0 Ports (Supports ESD Protection)
• - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
• - HD Audio Jacks: Line in / Front Speaker / Microphone
• Software and UEFI **Software**
• - ASRock Motherboard Utility (A-Tuning)
• UEFI**
• - ASRock EZ Mode
• - ASRock Full HD UEFI
• - ASRock My Favorites in UEFI
• - ASRock Instant Flash
• These utilities can be downloaded from ASRock Live Update & APP Shop.
• Accessories - I/O Shield
• - 2 x SATA Data Cables
• - 1 x Screw for M.2 Socket
• Hardware Monitor - Fan Tachometer: CPU, Chassis/Water Pump Fans
• - Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis/Water Pump Fans
• - Fan Multi-Speed Control: CPU, Chassis/Water Pump Fans
• - CASE OPEN detection
• - Voltage monitoring: CPU Vcore, DRAM, +0.82V PCH, +1.05V PCH, VCCIN AUX, VCCSA, +1.05V PROC, +12V, +5V, +3.3V
• Form Factor - Micro ATX Form Factor: 8.66-in x 7.6-in, 22.0 cm x 19.3 cm
• - Solid Capacitor design
• OS - Microsoft Windows 10 64-bit / 11 64-bit
• Certifications - FCC, CE
• - ErP/EuP ready (ErP/EuP ready power supply is required)
