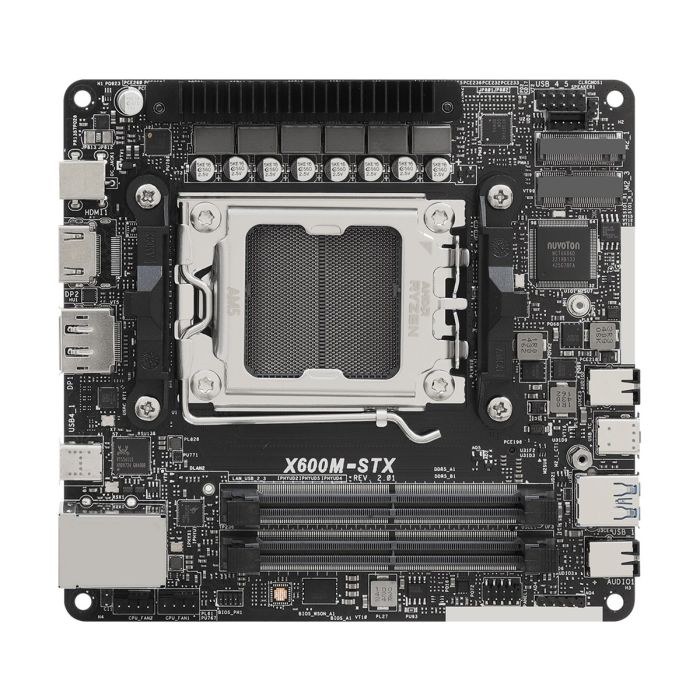

ASRock X600M-STX R2.0

Specifications

• CPU - Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
• - Supports CPU up to 65W
• - 6+2 Power Phase design
• Chipset - AMD X600
• Memory - Dual Channel DDR5 Memory Technology
• - 2 x DDR5 SO-DIMM Slots
• - Supports DDR5 non-ECC, un-buffered memory up to 6400+(OC)*
• - Max. capacity of system memory: 128GB
• - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules*
• Please refer to Memory Support List on ASRock's website for more information.
• BIOS - 256Mb AMI UEFI Legal BIOS with GUI support
• Graphics Integrated AMD RDNA™ graphics (Actual support may vary by CPU)
• - Three graphics output options: 1x HDMI, 1 x DisplayPort 1.4, 1 x USB4
• - Supports Triple Monitor
• - 1 x HDMI 2.1 TMDS 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
• - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz
• - 1 x USB4, supports HDCP 2.3 and max. resolution up to 8K 30Hz*
• Only the CPU's embedded graphics can be displayed through USB4 ports. If you want to display to a Type-C monitor, please use AM5 Ryzen™ 9000, 8000 and 7000 processors with embedded graphics.
• Audio - Realtek ALC269 Audio Codec
• - 1 x Headphone/Headset Jack
• - 1 x MIC-In
• - 1 x Audio Header
• LAN - 2.5 Gigabit LAN (RTL8125BG)
• Slots - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module
• Storage CPU:
• - 1 x M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
• - 1 x M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
• - 2 x SATA3 6.0 Gb/s Connectors
• Supports NVMe SSD as boot disks
• RAID - Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
• Connector - 1 x Chassis Intrusion Header
• - 2 x CPU Fan Connectors (2 x 4-pin)
• - 1 x Front Panel Header
• - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports)
• - 1 x Audio Header
• Rear Panel I/O - 1 x DC Jack (Compatible with the 19V power adapter)*
• - 1 x HDMI Port
• - 1 x DisplayPort 1.4
• - 1 x USB4 Type-C Port (40 Gb/s)**
• - 2 x USB 3.2 Gen1 Ports
• - 1 x RJ-45 LAN Port
• Please use 120W power adapter for 65W CPU and 90W power adapter for 35W CPU.
• Supports USB PD 3.0 up to 5V@3A (15W) charging
• Unique Feature **Superb Productivity**
• - PCIe Gen5 (M.2)
• - Dual Channel DDR5
• - USB4 Type-C Port (40 Gb/s)
• Ultrafast Connectivity**
• - 2.5G LAN
• EZ Update**
• - ASRock Auto Driver Installer
• Accessories - I/O Shield
• - 2 x SATA Data with Power Cable
• - 2 x Screws for M.2 Sockets
• - 1 x Screw for WiFi Module
• Hardware Monitor - CPU Temperature Sensing
• - CPU Fan Tachometer
• - CPU Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
• - CPU Fan Multi-Speed Control
• - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore
• Form Factor - Mini-STX Form Factor: 5.5-in x 5.8-in, 14.0 cm x 14.7 cm
• - 8 Layer PCB
• - Solid Capacitor design
• OS - Microsoft Windows 10 64-bit
• Certifications - FCC, CE
• - ErP/EuP ready (ErP/EuP ready power supply is required)
