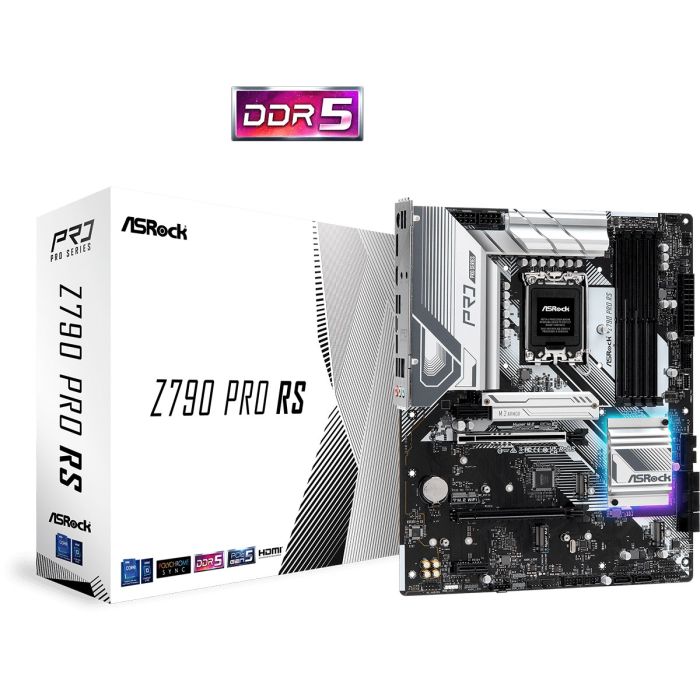

ASRock Z790 Pro RS

Specifications

• CPU - Supports 14 th, 13 th& 12 th Gen Intel Core™ Processors (LGA1700)
• - Supports Intel Hybrid Technology
• - Supports Intel Turbo Boost Max 3.0 Technology
• - Supports Intel Thermal Velocity Boost (TVB)
• - Supports Intel Adaptive Boost Technology (ABT)
• Chipset - Intel Z790
• Memory - Dual Channel DDR5 Memory Technology
• - 4 x DDR5 DIMM Slots
• - Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)*
• - Max. capacity of system memory: 256GB
• - Supports Intel Extreme Memory Profile (XMP) 3.0
• 1DPC 1R Up to 7200+ MHz (OC), 4800 MHz Natively.
• BIOS - 128Mb AMI UEFI Legal BIOS with GUI support
• Graphics - Intel Xe Graphics Architecture (Gen 12)
• - 1 x eDP 1.4, supports max. resolution up to Full HD 60Hz
• - 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
• - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
• Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
• Audio - 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
• - Nahimic Audio
• LAN - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
• - Dragon RTL8125BG
• - Supports Dragon 2.5G LAN Software
• - Smart Auto Adjust Bandwidth Control
• - Visual User Friendly UI
• - Visual Network Usage Statistics
• - Optimized Default Setting for Game, Browser, and Streaming Modes
• - User Customized Priority Control
• Slots **CPU:**
• - 1 x PCIe 5.0 x16 Slot (PCIE2), supports x16 mode*
• Chipset:**
• - 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode*
• - 2 x PCIe 3.0 x1 Slots (PCIE1 and PCIE4)*
• - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVio/CNVio2 (Integrated WiFi/BT)
• - Supports AMD CrossFire™
• Supports NVMe SSD as boot disks
• Storage **CPU:**
• - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
• Chipset:**
• - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
• - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
• - 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
• - 8 x SATA3 6.0 Gb/s Connectors
• Supports Intel Volume Management Device (VMD)
• RAID - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
• - Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
• USB - 1 x USB 3.2 Gen2x2 Type-C (Front)
• - 1 x USB 3.2 Gen2 Type-C (Rear)
• - 1 x USB 3.2 Gen2 Type-A (Rear)
• - 6 x USB 3.2 Gen1 (2 Rear, 4 Front)
• - 8 x USB 2.0 (4 Rear, 4 Front)
• All USB ports support ESD Protection
• Connector - 1 x eDP Signal Connector
• - 1 x SPI TPM Header
• - 1 x Power LED and Speaker Header
• - 1 x RGB LED Header*
• - 3 x Addressable LED Headers**
• - 1 x CPU Fan Connector (4-pin)***
• - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
• - 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
• - 1 x 24 pin ATX Power Connector
• - 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
• - 1 x Front Panel Audio Connector
• - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)
• - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
• - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
• - 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
• Supports in total up to 12V/3A, 36W LED Strip
• Support in total up to 5V/3A, 15W LED Strip
• CPU_FAN1 supports the fan power up to 1A (12W).
• CPU_FAN2/WP supports the fan power up to 2A (24W).
• CHA_FAN1~5/WP support the fan power up to 2A (24W).
• CPU_FAN2/WP and CHA_FAN1~5/WP can auto detect if 3-pin or 4-pin fan is in use.
• Rear Panel I/O - 2 x Antenna Mounting Points
• - 1 x PS/2 Mouse/Keyboard Port
• - 1 x HDMI Port
• - 1 x DisplayPort 1.4
• - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
• - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s)
• - 2 x USB 3.2 Gen1 Ports
• - 4 x USB 2.0 Ports
• - 1 x RJ-45 LAN Port
• - HD Audio Jacks: Line in / Front Speaker / Microphone
• Software and UEFI **Software**
• - ASRock Motherboard Utility (A-Tuning)
• - ASRock Dragon 2.5G LAN Software
• - ASRock Polychrome SYNC*
• UEFI**
• - ASRock EZ Mode
• - ASRock Full HD UEFI
• - ASRock My Favorites in UEFI
• - ASRock Auto Driver Installer
• - ASRock Instant Flash
• - ASRock Easy RAID Installer
• These utilities can be downloaded from ASRock Live Update & APP Shop.
• Accessories - 1 x User Manual
• - 2 x SATA Data Cables
• - 5 x Screws for M.2 Sockets
• - 1 x Standoff for M.2 Socket
• Form Factor - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
• - 2oz Copper PCB
• OS - Microsoft Windows 10 64-bit / 11 64-bit
• Windows 10 only supports version 21H2 or later
• Certifications - FCC, CE
• - ErP/EuP ready (ErP/EuP ready power supply is required)
