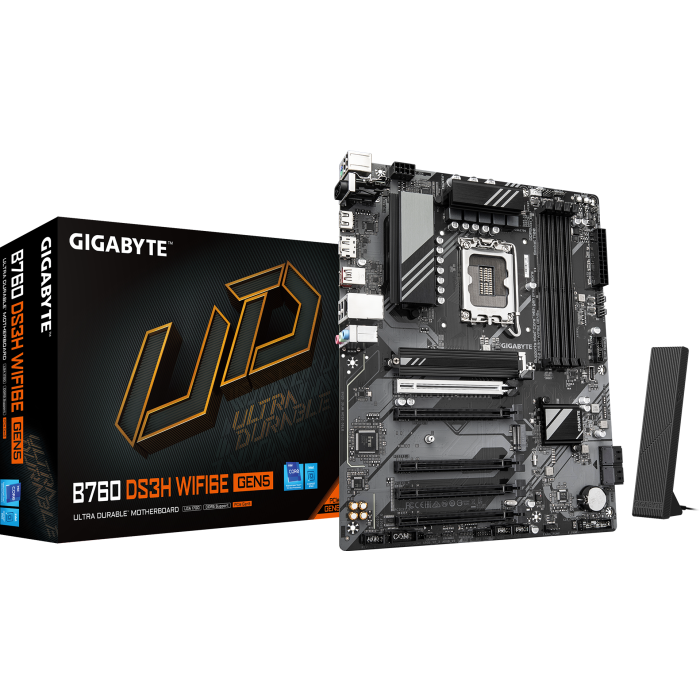

B760 DS3H WIFI6E GEN5

B760 DS3H WIFI6E GEN5 Motherboard B760 DS3H WIFI6E GEN5 B760 DS3H WF6E GEN5 PCIe Gen5 Durable Performance Future Connectivity Easy Friendly OVERVIEW 8+2+1 Phases Hybrid VRM Design 6-Layer & PCIe 5.0 Ready PCB Premium Choke and Capacitor Support 14th and 13th Gen. Intel® Core™ Processors UD Power Connector 24 pin ATX Power Connector 8 pin CPU with UD Solid Pin 4 x DIMMs, Dual Channel DDR5 2 x M.2 Slots 2 x PCIe 4.0 M.2 Slots Full-length PCIe slots 1 x PCIe 5.0 x16 with PCIe UD Slot 4 x PCIe 3.0 x1 VRM Thermal Armor Advanced M.2 Thermal Guard 4 x USB 2.0 1 x HDMI 1 x Display Port 1 x USB 3.2 Gen 2x2 Type-C® 1 x USB 3.2 Gen 2 GbE LAN Wi-Fi 6E 802.11ax WIFI EZ-Plug Front USB-C 5Gb/s 4 x SATA 6Gb/s Hi-Fi Audio 8-CH HD Audio High-End Audio Capacitor RGB FUSION 3 x Addressable LED Headers 1 x RGB LED Header Q-FLASH PLUS Button PCIe EZ-Latch Express to PCIE5 Performance The new GIGABYTE B760 motherboards provides the most efficient solution to enjoy boosted performance of PCIe Gen5 on the existing platform. PCIe 5.0 doubles the data transfer rate of PCIe 4.0 from 16 GT/s to 32 GT/s per lane. This substantial increase in bandwidth particularly benefits high-performance graphics cards, storage devices, and AI accelerators that demand faster data movement. GIGABYTE Ultra Durable™ motherboards built with optimal components inside out provide the prime performance and timeless platform. PCIe UD Slot GIGABYTE's one-piece stainless-steel shielding design reinforces the PCIe Slots, providing the extra strength required to support heavy graphics cards. 1.7X stronger shearing test 3.2X stronger retention force test Reduced Signal Degradation with SMD Technology Our innovative UD Power Connector design enhances power conductivity and thermal dissipation. Solid Pins Delivers superior conductivity and signal transmission and reduces metal wear from repeated connections VRM Thermal Durable VRM heatsinks keep your system cool and efficient. 2X Massive cooling surface Exceptional heat dissipation The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue. Smart Fan 6 Cool. Quiet. Customized. Superior cooling performance and whisper-quiet operation for your gaming rig. Note: Images are for illustrative purposes and may differ based on your model. High Current Support Supports both PWM and DC fans, plus water cooling pumps Up to 24W (12V x 2A) capacity per fan header Built-in over-current protection Precision Control Multiple temperature and fan speed points Customizable fan curves for optimal performance Dual Curve Mode Choose between slope and stair modes Tailor cooling to your specific needs and preferences Fan Stop Technology Fans can be completely turned off at low temperatures Ensures silent operation during light loads Smart Fan 6 BIOS UI Enhance Fan Curve UI 7 adjustable control points Expanded speed graph for precise adjustments Slope/Stair Dual Graph Mode Slope mode: Smooth fan speed curve Stair mode: St
