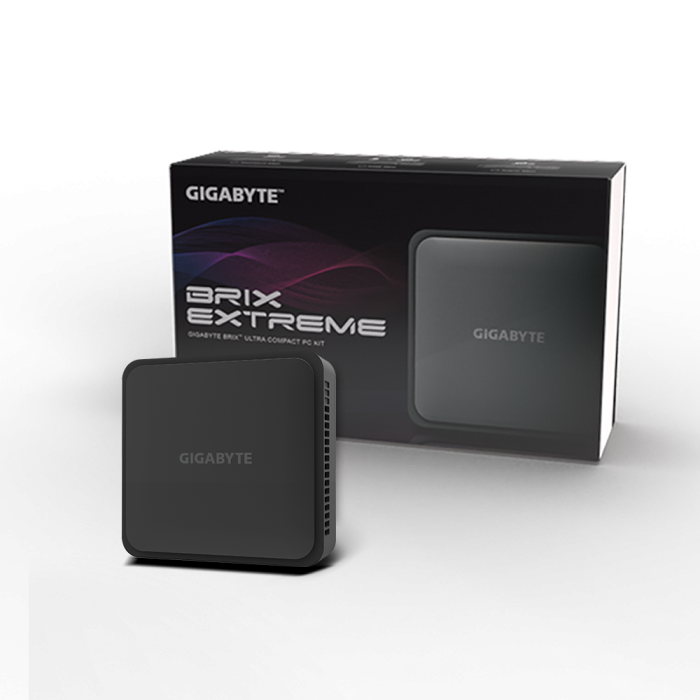

GB-BER3-7335
GB-BER3-7335
- 體積尺寸: 48.3 mm x 134.2 mm x 139.1 mm (1.9" x 5.3" x 5.4")
- 主機板尺寸: 125mm x 128.8 mm (4.9' x 5.1")
- 處理器: AMD Ryzen™ 3 7335U, Zen 3+ Architecture, 6nm process | 4.3 / 3.0 GHz, 4C / 8T, 10MB Cache | Radeon™ 660M graphic, 28W
- 記憶體: 2 x SO-DIMM DDR5 slots, support up to 4800MHz | Max. 64GB
- LAN: 2.5G LAN (Realtek 8125)
- Wifi Card: AMD RZ608 Wi-Fi 6E / Bluetooth 5.2 Module
- Audio: Realtek ALC897 HD audio
- Video: AMD Radeon™ 660M Graphic
- HDMI 解析度(最大值): 2x HDMI2.1 with HDCP 2.3 | Max Resolution 3840x2160@60Hz
- Mini DP 解析度(最大值): Mini DP /USB Type-C DP supports : DP1.4 | Max Resolution 3840x2160@60Hz
- 儲存裝置: 1 x M.2 M.2 2280 slot (PCI-e Gen4 x 4 / SATA)
- 擴充插槽: 1 x M.2 A-E key 2230 slot (PCIe x 1 ; occupied by the Wi-Fi + BT card)
- 前置 I/O: 1 x Power Button | 1 x USB 3.2 type C (Gen2) | 3 x USB 3.2 type A (Gen2) | 1 x head phone jack with MIC
- 背板 I/O: 2 x HDMI 2.1 | 1 x mini DP | 1 x USB4 type C with DP alt mode | 2 x USB 2.0 type A | 1 x RJ45 | 1 x DC-In | 1 x Kensington lock slot
- TPM: Integrate TPM module* (in selected regions /countries)
- 電源供應: Input: AC 100-240V | Output: DC 19.5V / 6.92A, 135W
- VESA 支援: Mounting Bracket Included
- Support OS: Windows 11 64Bit
- 環境操作溫度: Operating Temperature 0°C to 35°C Storage Temperature -20°C to +60°C
- 體積尺寸: 48.3 mm x 134.2 mm x 139.1 mm (1.9" x 5.3" x 5.4")
- 主機板尺寸: 125mm x 128.8 mm (4.9' x 5.1")
- 處理器: AMD Ryzen™ 3 7335U, Zen 3+ Architecture, 6nm process | 4.3 / 3.0 GHz, 4C / 8T, 10MB Cache | Radeon™ 660M graphic, 28W
- 記憶體: 2 x SO-DIMM DDR5 slots, support up to 4800MHz | Max. 64GB
- LAN: 2.5G LAN (Realtek 8125)
- Wifi Card: AMD RZ608 Wi-Fi 6E / Bluetooth 5.2 Module
- Audio: Realtek ALC897 HD audio
- Video: AMD Radeon™ 660M Graphic
- HDMI 解析度(最大值): 2x HDMI2.1 with HDCP 2.3 | Max Resolution 3840x2160@60Hz
- Mini DP 解析度(最大值): Mini DP /USB Type-C DP supports : DP1.4 | Max Resolution 3840x2160@60Hz
- 儲存裝置: 1 x M.2 M.2 2280 slot (PCI-e Gen4 x 4 / SATA)
- 擴充插槽: 1 x M.2 A-E key 2230 slot (PCIe x 1 ; occupied by the Wi-Fi + BT card)
- 前置 I/O: 1 x Power Button | 1 x USB 3.2 type C (Gen2) | 3 x USB 3.2 type A (Gen2) | 1 x head phone jack with MIC
- 背板 I/O: 2 x HDMI 2.1 | 1 x mini DP | 1 x USB4 type C with DP alt mode | 2 x USB 2.0 type A | 1 x RJ45 | 1 x DC-In | 1 x Kensington lock slot
- TPM: Integrate TPM module* (in selected regions /countries)
- 電源供應: Input: AC 100-240V | Output: DC 19.5V / 6.92A, 135W
- VESA 支援: Mounting Bracket Included
- Support OS: Windows 11 64Bit
- 環境操作溫度: Operating Temperature 0°C to 35°C Storage Temperature -20°C to +60°C
