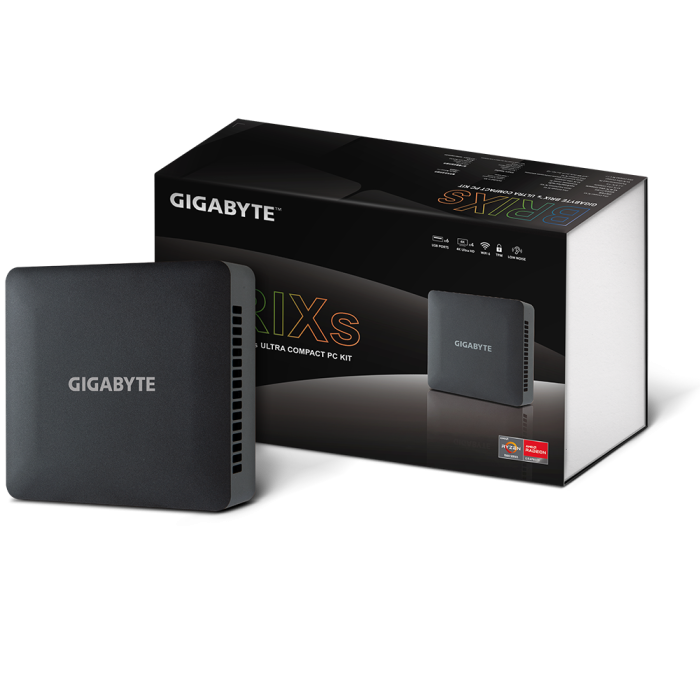

GB-BRR5HS-7530
GB-BRR5HS-7530
- 體積尺寸: 124 x 120 x 49.7 mm
- 處理器: AMD Ryzen™ 5 7530U Processor | 6 Cores, 12 Threads, 19MB Cache | Frequency up to 4.5GHz, 15W
- 記憶體: 2 x SO-DIMM DDR4 slot | 3200MHz | Max. 64GB
- LAN: Realtek RTL8125 | 2.5 GbE LAN
- Wifi Card: AMD RZ608 | Wi-Fi 6 ; 802.11ax ; 2.4 & 5 GHz ; Bluetooth 5.2
- 繪圖晶片: AMD Radeon™ Graphics
- Audio: Realtek ALC269 codec HD audio
- Video: 2 x HDMI 2.1 with HDCP 2.2, Max Resolution 3840x2160@60Hz | 2 x Type-C, supports DP1.4a, Max Resolution 3840x2160@60Hz
- 儲存裝置: 1 x M.2 2280 slot for SSD (PCI-e Gen4 x4 / SATA3) | 1 x 2.5” slot for HDD/SSD (9.0mm thick; SATA3) | 2 x M.2 2280 slots for SSD (PCI-e Gen4 x1 / SATA3)
- 前置 I/O: 1 x Headphone / Microphone | 2 x USB3.2 Gen2 Type-A | 2 x USB2.0 Type-A | 1 x Power Button
- 背板 I/O: 1 x 2.5 GbE RJ45 | 2 x HDMI 2.1 | 2 x USB3.2 Gen2 Type-C with DP alt Mode | 1 x Kensington Lock Slot | 1 x DC-In
- 電源供應: Input: AC 100-240V | Output: DC 19.5V / 6.92A, 135W
- VESA 支援: VESA support | Supports 75 x 75 and 100 x 100 mm | *VESA Bracket to be purchased seperately.
- Support OS: Win11 64 bit
- 環境操作溫度: System Environment Operating Temperature: 0°C to +35°C | System Storage Temperature: -20°C to +60°C
- 體積尺寸: 124 x 120 x 49.7 mm
- 處理器: AMD Ryzen™ 5 7530U Processor | 6 Cores, 12 Threads, 19MB Cache | Frequency up to 4.5GHz, 15W
- 記憶體: 2 x SO-DIMM DDR4 slot | 3200MHz | Max. 64GB
- LAN: Realtek RTL8125 | 2.5 GbE LAN
- Wifi Card: AMD RZ608 | Wi-Fi 6 ; 802.11ax ; 2.4 & 5 GHz ; Bluetooth 5.2
- 繪圖晶片: AMD Radeon™ Graphics
- Audio: Realtek ALC269 codec HD audio
- Video: 2 x HDMI 2.1 with HDCP 2.2, Max Resolution 3840x2160@60Hz | 2 x Type-C, supports DP1.4a, Max Resolution 3840x2160@60Hz
- 儲存裝置: 1 x M.2 2280 slot for SSD (PCI-e Gen4 x4 / SATA3) | 1 x 2.5” slot for HDD/SSD (9.0mm thick; SATA3) | 2 x M.2 2280 slots for SSD (PCI-e Gen4 x1 / SATA3)
- 前置 I/O: 1 x Headphone / Microphone | 2 x USB3.2 Gen2 Type-A | 2 x USB2.0 Type-A | 1 x Power Button
- 背板 I/O: 1 x 2.5 GbE RJ45 | 2 x HDMI 2.1 | 2 x USB3.2 Gen2 Type-C with DP alt Mode | 1 x Kensington Lock Slot | 1 x DC-In
- 電源供應: Input: AC 100-240V | Output: DC 19.5V / 6.92A, 135W
- VESA 支援: VESA support | Supports 75 x 75 and 100 x 100 mm | *VESA Bracket to be purchased seperately.
- Support OS: Win11 64 bit
- 環境操作溫度: System Environment Operating Temperature: 0°C to +35°C | System Storage Temperature: -20°C to +60°C
