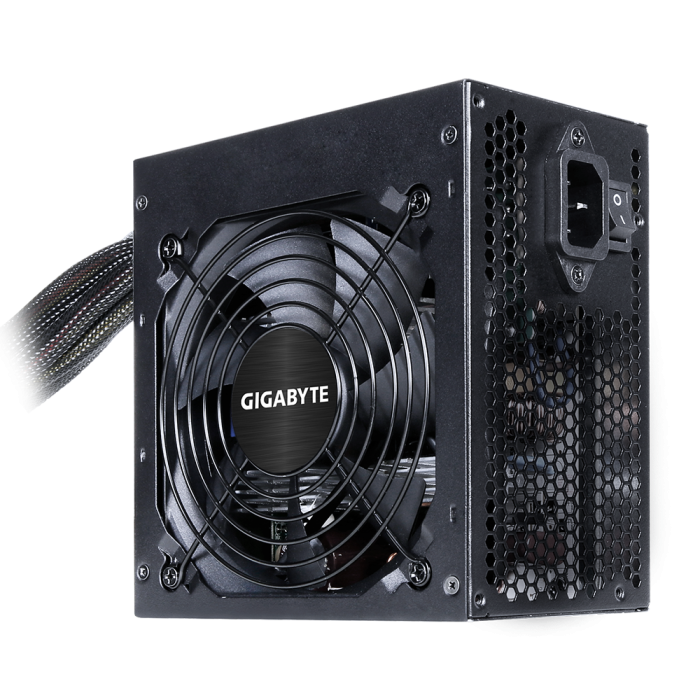

P550B
P550B
- 型號: P550B
- ATX 版本: Intel Form Factor ATX 12V v2.31
- 功率校正 (PFC): Active PFC(>0.9 typical)
- 輸入電壓: 100-240 Vac(full range)
- 輸入電流: 8-4 A
- 輸入頻率: 60-50 Hz
- 額定功率: 550W
- 尺寸: 150 x 140 x 86 mm
- 風扇: 120mm Hydraulic Bearing (HYB) Fan
- 80 PLUS 等級: Bronze
- 轉換效率: 85% at typical load
- 平均故障間隔 (MTBF): >100,000 hours
- 保護機制: OVP/OPP/SCP/UVP/OCP/OTP
- 電源良好信號: 100-500ms
- 持續輸出時間: >16ms
- 線材: Flat, All black
- 電源接頭: ATX/MB 20+4 Pin x 1 : 550mm*1 | CPU/EPS 4+4 Pin x 1 : 600mm*1 | PCI-e 6+2 Pin x 2 : 550mm+150mm*1 | SATA x 6 : 500mm+120mm+120mm*2 | 4 Pin Peripheral x 3 + 4-Pin floppy x 1 : 500mm+120mm+120mm+120mm*1
