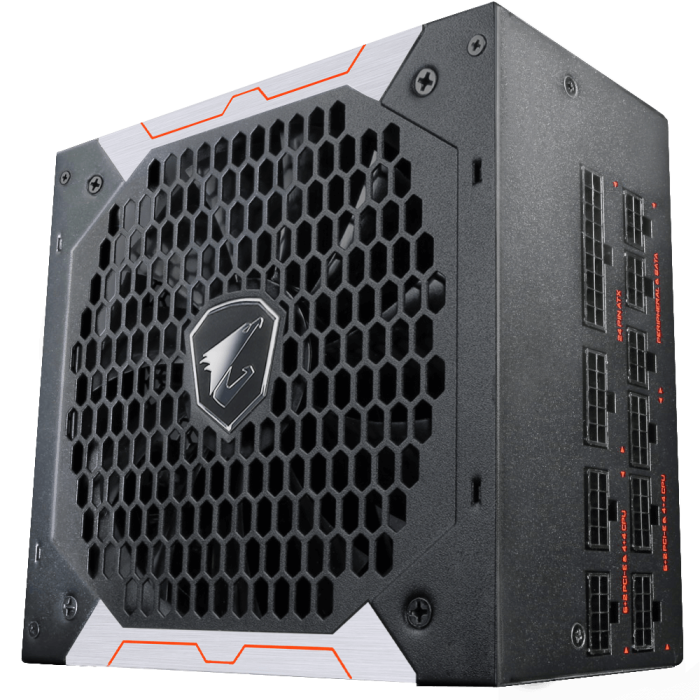

UD1600PM PG5 AI TOP

In stock

SKU

Power-Supply_GP-UD1600PM-PG5

Be the first to review this product

By ordering

UD1600PM PG5 AI TOP

Skip to the end of the images gallery

Skip to the beginning of the images gallery

型號: GP-UD1600PM PG5
ATX 版本: Intel Form Factor ATX 12V v3.1
功率校正 (PFC): Active PFC (>0.9 typical)
輸入電壓: 100-240 Vac (full range)
輸入電流: 15-7.5A
輸入頻率: 60-50 Hz
額定功率: 1600W
尺寸: 150 x 190 x 86mm
風扇: 140mm Double Ball Bearing fan
80 PLUS 等級: Platinum
轉換效率: 92% at typical load
平均故障間隔 (MTBF): >100,000 hours
保護機制: OVP/OPP/SCP/UVP/OCP/OTP/NLO/SIP
電源良好信號: 100-150ms
持續輸出時間: >16ms
線材: Flat, All black
電源接頭: ATX/MB 20+4 Pin x 1 : 610mm*1 | CPU/EPS 4+4 Pin x 2 : 650mm*2 | PCI-E 16 Pin x 2 : 700mm*2 | PCI-E 16 Pin to PCI-E 8 pin x 2 : 700mm*2 | PCI-E 6+2 Pin x 8 : 650mm+150mm*4 | SATA x 16 : 650mm+150mm+150mm+150mm*4 | 4 Pin Peripheral x 6 + 4 Pin floppy x 2 : 600mm+150mm+150mm+150mm*2
型號: GP-UD1600PM PG5
ATX 版本: Intel Form Factor ATX 12V v3.1
功率校正 (PFC): Active PFC (>0.9 typical)
輸入電壓: 100-240 Vac (full range)
輸入電流: 15-7.5A
輸入頻率: 60-50 Hz
額定功率: 1600W
尺寸: 150 x 190 x 86mm
風扇: 140mm Double Ball Bearing fan
80 PLUS 等級: Platinum
轉換效率: 92% at typical load
平均故障間隔 (MTBF): >100,000 hours
保護機制: OVP/OPP/SCP/UVP/OCP/OTP/NLO/SIP
電源良好信號: 100-150ms
持續輸出時間: >16ms
線材: Flat, All black
電源接頭: ATX/MB 20+4 Pin x 1 : 610mm*1 | CPU/EPS 4+4 Pin x 2 : 650mm*2 | PCI-E 16 Pin x 2 : 700mm*2 | PCI-E 16 Pin to PCI-E 8 pin x 2 : 700mm*2 | PCI-E 6+2 Pin x 8 : 650mm+150mm*4 | SATA x 16 : 650mm+150mm+150mm+150mm*4 | 4 Pin Peripheral x 6 + 4 Pin floppy x 2 : 600mm+150mm+150mm+150mm*2
