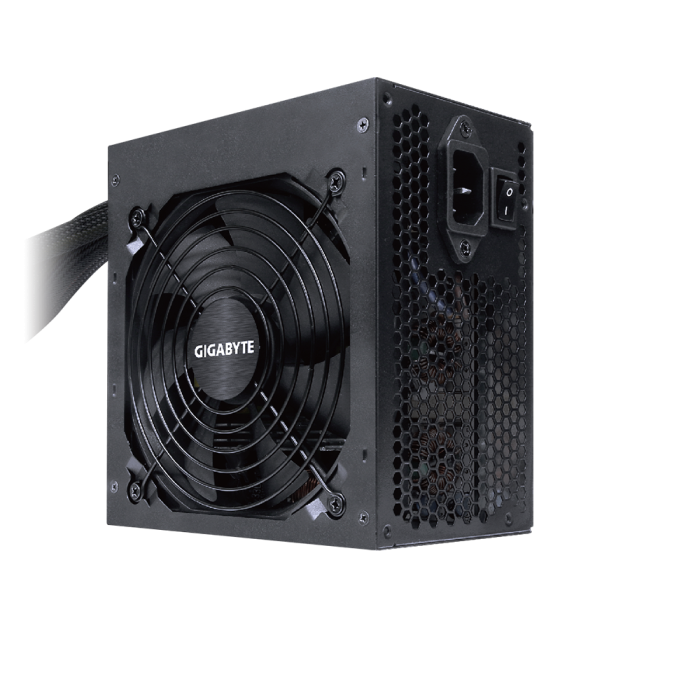

XP1200M
XP1200M
- 型號: XP1200M
- ATX 版本: Intel Form Factor ATX 12V v2.31
- 功率校正 (PFC): Active PFC (>0.9 typical)
- 輸入電壓: 115-240 Vac (full range)
- 輸入電流: 10A
- 輸入頻率: 60-50 Hz
- 額定功率: 1200W
- 尺寸: D180 x W150 x H86mm
- 風扇: 140mm Double ball bearing fan
- 轉換效率: 90% at typical load
- 平均故障間隔 (MTBF): >100,000 hours
- 保護機制: OVP/OPP/SCP/UVP/OCP/OTP
- Regulatory: CE/BSMI/EAC/TUV/FCC/CCC/RCM
- 線材: Black Flat Cables
- 電源接頭: ATX/MB 20+4 Pin x 1 : 700mm*1 | CPU/EPS 4+4 Pin x 2 : 800mm*1+ 650mm*1 | PCI-e 6+2 Pin x 6 : 650mm*2 + (650mm+100mm)*2 | SATA x 12 : (550mm+150mm+150mm+150mm)*3 | 4 Pin Peripheral x 8 : (550mm+150mm+150mm+150mm)*2 | 4 Pin Floppy x 2 : 100mm*2
- 型號: XP1200M
- ATX 版本: Intel Form Factor ATX 12V v2.31
- 功率校正 (PFC): Active PFC (>0.9 typical)
- 輸入電壓: 115-240 Vac (full range)
- 輸入電流: 10A
- 輸入頻率: 60-50 Hz
- 額定功率: 1200W
- 尺寸: D180 x W150 x H86mm
- 風扇: 140mm Double ball bearing fan
- 轉換效率: 90% at typical load
- 平均故障間隔 (MTBF): >100,000 hours
- 保護機制: OVP/OPP/SCP/UVP/OCP/OTP
- Regulatory: CE/BSMI/EAC/TUV/FCC/CCC/RCM
- 線材: Black Flat Cables
- 電源接頭: ATX/MB 20+4 Pin x 1 : 700mm*1 | CPU/EPS 4+4 Pin x 2 : 800mm*1+ 650mm*1 | PCI-e 6+2 Pin x 6 : 650mm*2 + (650mm+100mm)*2 | SATA x 12 : (550mm+150mm+150mm+150mm)*3 | 4 Pin Peripheral x 8 : (550mm+150mm+150mm+150mm)*2 | 4 Pin Floppy x 2 : 100mm*2
