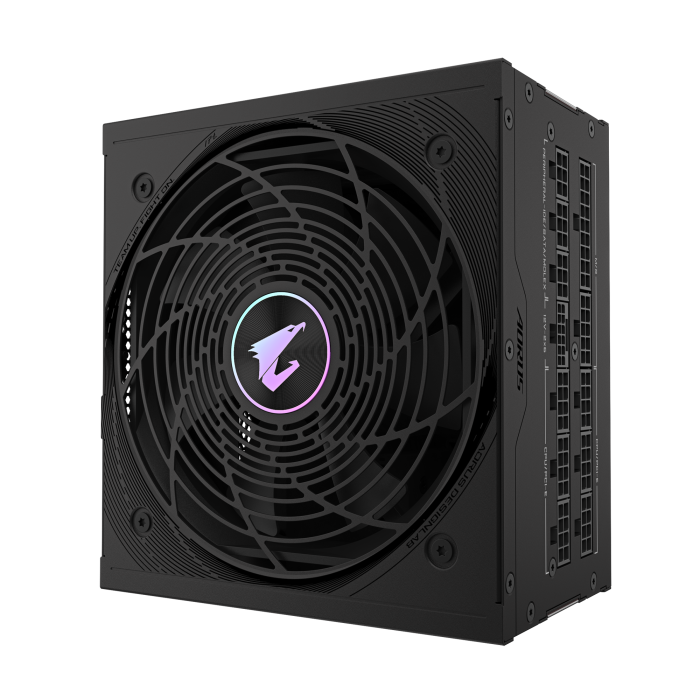

AORUS ELITE P850W 80+ Platinum Modular PCIe 5.0
AORUS ELITE P850W 80+ Platinum Modular PCIe 5.0
- 型號: GP-AE850PM PG5
- ATX 版本: Intel Form Factor ATX 12V v3.0 (compatible with ATX 3.1)
- 功率校正 (PFC): Active PFC (>0.9 typical)
- 輸入電壓: 100-240 Vac (full range)
- 輸入電流: 12-6A
- 輸入頻率: 60-50 Hz
- 額定功率: 850W
- 尺寸: 150 x 140 x 86mm
- 風扇: 120mm Fluid Dynamic Bearing (FDB) Fan
- 80 PLUS 等級: Platinum
- 轉換效率: 92% at typical load
- 平均故障間隔 (MTBF): >100,000 hours
- 保護機制: OVP/OPP/SCP/UVP/OCP/OTP
- 電源良好信號: 100-150ms
- 持續輸出時間: >16ms
- 線材: Flat, All black
- 電源接頭: ATX/MB 20+4 Pin x 1 : 650mm*1 | CPU/EPS 4+4 Pin x 2 : 700mm*2 | PCI-e 16 Pin x 1: 700mm*1 | PCI-e 6+2 Pin x 6 : 650mm+150mm*2, 750mm*2 | SATA x 8 : 600mm+150mm+150mm+150mm*2 | 4 Pin Peripheral x 4 : 500mm+150mm+150mm+150mm*1
- 型號: GP-AE850PM PG5
- ATX 版本: Intel Form Factor ATX 12V v3.0 (compatible with ATX 3.1)
- 功率校正 (PFC): Active PFC (>0.9 typical)
- 輸入電壓: 100-240 Vac (full range)
- 輸入電流: 12-6A
- 輸入頻率: 60-50 Hz
- 額定功率: 850W
- 尺寸: 150 x 140 x 86mm
- 風扇: 120mm Fluid Dynamic Bearing (FDB) Fan
- 80 PLUS 等級: Platinum
- 轉換效率: 92% at typical load
- 平均故障間隔 (MTBF): >100,000 hours
- 保護機制: OVP/OPP/SCP/UVP/OCP/OTP
- 電源良好信號: 100-150ms
- 持續輸出時間: >16ms
- 線材: Flat, All black
- 電源接頭: ATX/MB 20+4 Pin x 1 : 650mm*1 | CPU/EPS 4+4 Pin x 2 : 700mm*2 | PCI-e 16 Pin x 1: 700mm*1 | PCI-e 6+2 Pin x 6 : 650mm+150mm*2, 750mm*2 | SATA x 8 : 600mm+150mm+150mm+150mm*2 | 4 Pin Peripheral x 4 : 500mm+150mm+150mm+150mm*1
