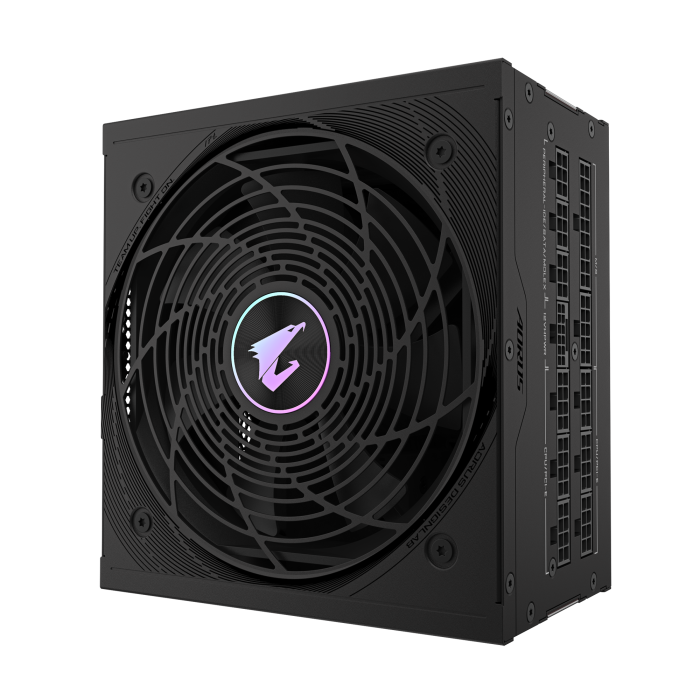

AORUS P850W 80+ GOLD Modular

In stock

SKU

Power-Supply_GP-AP850GM

Be the first to review this product

By ordering

AORUS P850W 80+ GOLD Modular

Skip to the end of the images gallery

Skip to the beginning of the images gallery

型號: GP-AP850GM
ATX 版本: Intel Form Factor ATX 12V v2.31
功率校正 (PFC): Active PFC (>0.9 typical)
輸入電壓: 100-240 Vac (full range)
輸入電流: 10A
輸入頻率: 47-63 Hz
額定功率: 850W
尺寸: 150 x 160 x 86mm
風扇: 135mm Double ball bearing fan
80 PLUS 等級: Gold
轉換效率: 90% at typical load
平均故障間隔 (MTBF): >100,000 hours
保護機制: OVP/OPP/SCP/UVP/OCP/OTP
電源良好信號: 100ms ~ 150ms
持續輸出時間: > 16m sec at full load (115V)
線材: Flat, All black
電源接頭: ATX/MB 20+4 Pin x 1 : 650mm | CPU/EPS 4+4 Pin x 2 : 800mm*1 , 650mm*1 | PCI-e 6+2 Pin x 6 : 750mm*2 , 650mm+150mm*2 | SATA x6 + 4 Pin Peripheral x2 : | 550mm+100mm+100mm+100mm*1 | 450mm+100mm+100mm+100mm *1 | 4 Pin Peripheral x 3 + 4 pin Floppy x 1 : 450mm+100mm+100mm+100mm*1 | 4 Pin Floppy x 1 : 100mm
型號: GP-AP850GM
ATX 版本: Intel Form Factor ATX 12V v2.31
功率校正 (PFC): Active PFC (>0.9 typical)
輸入電壓: 100-240 Vac (full range)
輸入電流: 10A
輸入頻率: 47-63 Hz
額定功率: 850W
尺寸: 150 x 160 x 86mm
風扇: 135mm Double ball bearing fan
80 PLUS 等級: Gold
轉換效率: 90% at typical load
平均故障間隔 (MTBF): >100,000 hours
保護機制: OVP/OPP/SCP/UVP/OCP/OTP
電源良好信號: 100ms ~ 150ms
持續輸出時間: > 16m sec at full load (115V)
線材: Flat, All black
電源接頭: ATX/MB 20+4 Pin x 1 : 650mm | CPU/EPS 4+4 Pin x 2 : 800mm*1 , 650mm*1 | PCI-e 6+2 Pin x 6 : 750mm*2 , 650mm+150mm*2 | SATA x6 + 4 Pin Peripheral x2 : | 550mm+100mm+100mm+100mm*1 | 450mm+100mm+100mm+100mm *1 | 4 Pin Peripheral x 3 + 4 pin Floppy x 1 : 450mm+100mm+100mm+100mm*1 | 4 Pin Floppy x 1 : 100mm
