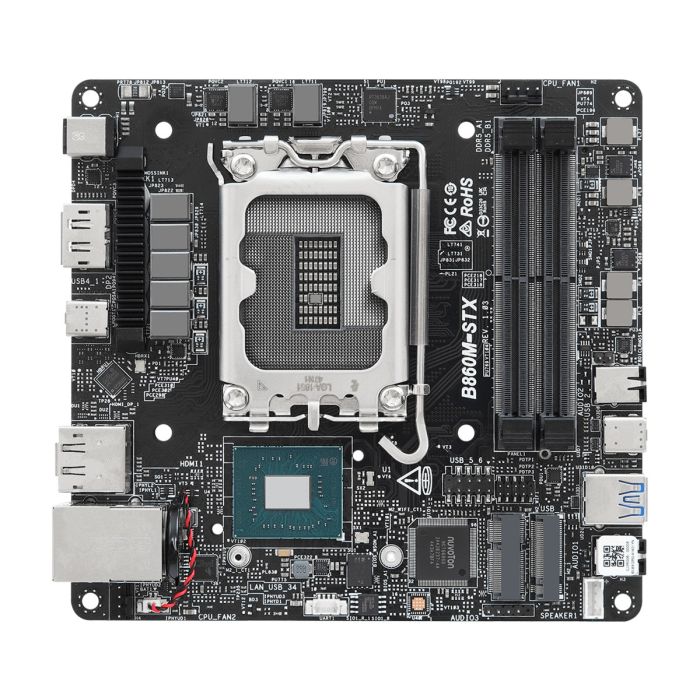

ASRock B860M-STX

Specifications

• CPU - Supports Intel Core™ Ultra Processors (Series 2) (LGA1851)
• - Supports Intel Hybrid Technology
• - Supports Intel Turbo Boost Max 3.0 Technology
• - Supports Intel Thermal Velocity Boost (TVB)
• - Supports Intel Adaptive Boost Technology (ABT)
• - Integrated NPU for dedicated AI acceleration
• Chipset - Intel B860
• Memory - Dual Channel DDR5 Memory Technology
• - 2 x DDR5 SO-DIMM Slots
• - Supports DDR5 non-ECC, un-buffered memory up to 5600
• - Supports DDR5 CSODIMM memory modules up to 7200 (OC)
• - Max. capacity of system memory: 128GB
• - Supports Intel Extreme Memory Profile (XMP) 3.0x
• BIOS - 128Mb AMI UEFI Legal BIOS with multilingual GUI support
• - ACPI 6.0 Compliant wake up events
• - SMBIOS 2.7 Support
• - DRAM Voltage Multi-adjustment
• Graphics - Intel Xe LPG Graphics Architecture
• - Supports Quad Display (four 4K displays) and Triple Display (two 4K displays and one 8K display)
• - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
• - 2 x DisplayPort 1.4 with DSC (compressed), support HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
• - 1 x Intel Thunderbolt™ 4, supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz**
• Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
• Only the CPU's embedded graphics can be displayed through Thunderbolt™ ports. If you want to display to a Thunderbolt™ monitor, please use CPU models with embedded graphics.
• Audio - Realtek ALC269 Audio Codec
• - 1 x Headphone/Headset Jack
• - 1 x MIC-In
• - 1 x Audio Header
• LAN - 2.5 Gigabit LAN (RTL8125BG)
• Slots - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module and Intel CNVi (Integrated WiFi/BT)
• Storage - 2 x SATA3 6.0 Gb/s Connectors
• - 1 x M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
• - 1 x M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
• Supports Intel Optane™ Technology
• RAID - Supports RAID 0 and RAID 1 for SATA storage devices
• Connector - 1 x Headphone/Headset Jack
• - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection)
• - 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s) (Supports ESD Protection)
• - 1 x Microphone Input Jack
• Rear Panel I/O - 1 x DC Jack (Compatible with the 19V power adapter)*
• - 1 x HDMI Port
• - 2 x DisplayPort 1.4
• - 1 x Thunderbolt™ 4 Type-C Port (40 Gb/s for USB4 protocol; 40Gb/s for Thunderbolt™ protocol)**
• - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection)
• - 1 x USB 3.2 Gen1 Type-A Port (Supports ESD Protection)
• - 1 x RJ-45 LAN Port
• Please use 120W power adapter for 65W CPU and 90W power adapter for 35W CPU.
• Supports USB PD 3.0 up to 5V@3A (15W) charging
• Unique Feature **Superb Productivity**
• - PCIe Gen5 (M.2)
• - Dual Channel DDR5
• - Thunderbolt™ 4 Type-C Ports (40 Gb/s)
• Ultrafast Connectivity**
• - 2.5G LAN
• EZ Update**
• - ASRock Auto Driver Installer
• Accessories - Quick Installation Guide, I/O Shield
• - 2 x SATA Data with Power Cable
• - 2 x Screws for M.2 Sockets
• - 1 x Screw for WiFi Module
• Hardware Monitor - CPU Temperature Sensing
• - CPU Fan Tachometer
• - CPU Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
• - CPU Fan Multi-Speed Control
• - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore
• Form Factor - Mini-STX Form Factor: 5.5-in x 5.8-in, 14.0 cm x 14.7 cm
• - 8 Layer PCB
• OS - Microsoft Windows 10 64-bit / 11 64-bit
• Certifications - FCC, CE
• - ErP/EuP ready (ErP/EuP ready power supply is required)
