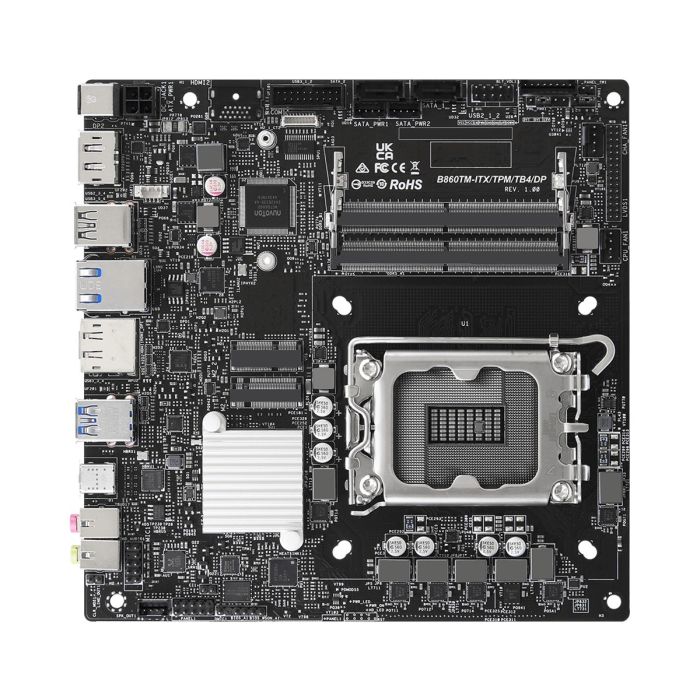

ASRock B860TM-ITX/TPM/TB4/DP

Supports Intel Core Ultra Series 2 processors, dual DDR5 memory slots, multiple storage options, and up to five display outputs (supports quad-display). The B860TM-ITX/TPM/TB4/DP offers strong performance and connectivity, perfect for Mini PC, All-in-One (AIO) solutions, smart retail, interactive kiosks, enterprise workplaces, and digital-first offices.

Specifications

• CPU - Supports Intel Core™ Ultra Processors (Series 2) (LGA1851)
• - Supports Intel Hybrid Technology
• - Supports Intel Turbo Boost Max 3.0 Technology
• - Supports Intel Thermal Velocity Boost (TVB)
• - Supports Intel Adaptive Boost Technology (ABT)
• - Integrated NPU for dedicated AI acceleration
• Chipset - Intel B860
• Memory - Dual Channel DDR5 Memory Technology
• - 2 x DDR5 SO-DIMM Slots
• - Supports DDR5 non-ECC, un-buffered memory up to 5600
• - Supports DDR5 CSODIMM memory modules up to 6400
• - Max. capacity of system memory: 128GB
• - Supports Intel Extreme Memory Profile (XMP) 3.0x
• BIOS - 128Mb AMI UEFI Legal BIOS with multilingual GUI support
• - ACPI 6.0 Compliant wake up events
• - SMBIOS 2.7 Support
• Graphics - Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
• - Intel Xe LPG Graphics Architecture
• - Five graphics output options: 1 x Intel Thunderbolt™ 4, 1 x HDMI, 2 x DisplayPort 1.4, 1 x LVDS
• - Supports Quad Display
• - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
• - 2 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
• - 1 x Intel Thunderbolt™ 4, support HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz*
• - 1 x LVDS, supports max. resolution up to Full HD (1920x1080) 60Hz
• Only the CPU's embedded graphics can be displayed through Thunderbolt™ ports. If you want to display to a Thunderbolt™ monitor, please use CPU models with embedded graphics.
• Audio - Realtek ALC269 Audio Codec
• - 1 x MIC IN
• - 1 x Line out
• LAN - 1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Intel I226V)
• Slots - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module and Intel CNVi (Integrated WiFi/BT)
• Storage - 2 x SATA3 6.0 Gb/s Connectors
• - 1 x M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
• - 1 x M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* disks
• Supports Intel Optane™ Technology
• RAID - Supports RAID 0 and RAID 1 for SATA storage devices
• Connector - 1 x COM Port Header
• - 1 x Chassis Intrusion Header
• - 1 x Panel Voltage Selection Header
• - 1 x Backlight Inverter Voltage Selection Header
• - 1 x FPD Brightness Header
• - 1 x Panel Off Header
• - 1 x LVDS Connector
• - 1 x CPU Fan Connector (4-pin)*
• - 1 x Chassis Fan Connector (4-pin)**
• - 1 x 4 pin 19V Power Connector (2-Pin)
• - 1 x Front Panel Audio Connector
• - 1 x Internal Speaker Header (4-Pin)
• - 1 x Digital MIC Header
• - 2 x SATA Power Connectors
• - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
• - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
• The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
• Unique Feature **Superb Productivity**
• - PCIe Gen5 (M.2)
• - Dual Channel DDR5
• - Thunderbolt™ 4 Type-C Ports (40 Gb/s)
• Ultrafast Connectivity**
• - 2.5G LAN
• EZ Update**
• - ASRock Auto Driver Installer
• Accessories - Quick Installation Guide, I/O Shield
• - 2 x SATA Data with Power Cable
• - 2 x Screws for M.2 Sockets
• - 1 x Screw for WiFi Module
• Hardware Monitor - CPU/Chassis Temperature Sensing
• - CPU/Chassis Fan Tachometer
• - CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
• - CPU/Chassis Fan Multi-Speed Control
• - CASE OPEN detection
• - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore
• Form Factor - Thin Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm (Compatible with Mini-ITX)
• - 8 Layer PCB
• - Solid Capacitor design
• OS - Microsoft Windows 10 64-bit / 11 64-bit
• Certifications - FCC, CE
• - ErP/EuP ready (ErP/EuP ready power supply is required)
