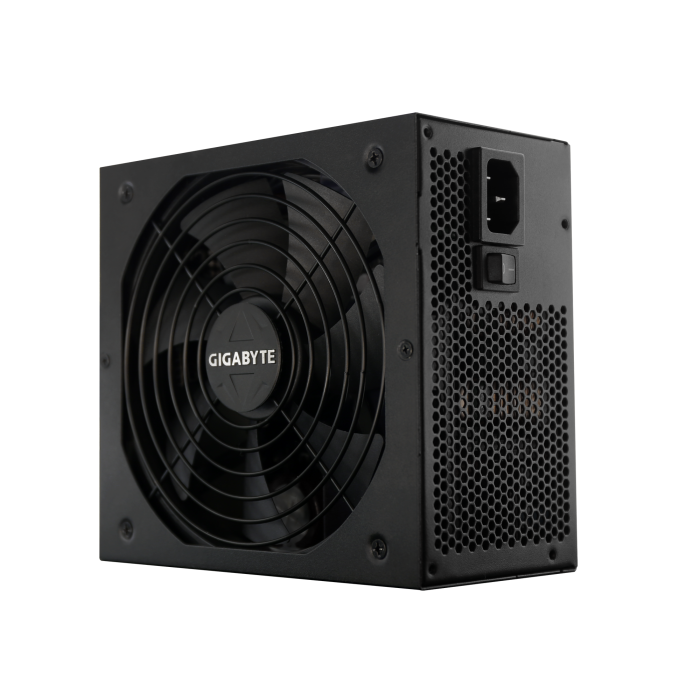

B700H
B700H
- 型號: B700H
- ATX 版本: Intel Form Factor ATX 12V v2.31
- 功率校正 (PFC): Active PFC (>0.9 typical)
- 輸入電壓: 100-240 Vac (full range)
- 輸入電流: 10A
- 輸入頻率: 47-63 Hz
- 額定功率: 700W
- 尺寸: D140 x W150 x H86mm
- 風扇: 120mm Double ball bearing fan
- 轉換效率: 85% at typical load
- 平均故障間隔 (MTBF): >100,000 hours
- 保護機制: OVP/OPP/SCP/UVP
- Regulatory: CE/BSMI/EAC/TUV/FCC/UL/RCM
- 線材: Black Flat Cables
- 電源接頭: MB 20+4 Pin x1 | CPU 4+4 Pin x1 | PCI-e 6+2 Pin x4 | SATA x7 | 4Pin Peripheral x3 | 4Pin Floopy x1
- 型號: B700H
- ATX 版本: Intel Form Factor ATX 12V v2.31
- 功率校正 (PFC): Active PFC (>0.9 typical)
- 輸入電壓: 100-240 Vac (full range)
- 輸入電流: 10A
- 輸入頻率: 47-63 Hz
- 額定功率: 700W
- 尺寸: D140 x W150 x H86mm
- 風扇: 120mm Double ball bearing fan
- 轉換效率: 85% at typical load
- 平均故障間隔 (MTBF): >100,000 hours
- 保護機制: OVP/OPP/SCP/UVP
- Regulatory: CE/BSMI/EAC/TUV/FCC/UL/RCM
- 線材: Black Flat Cables
- 電源接頭: MB 20+4 Pin x1 | CPU 4+4 Pin x1 | PCI-e 6+2 Pin x4 | SATA x7 | 4Pin Peripheral x3 | 4Pin Floopy x1
