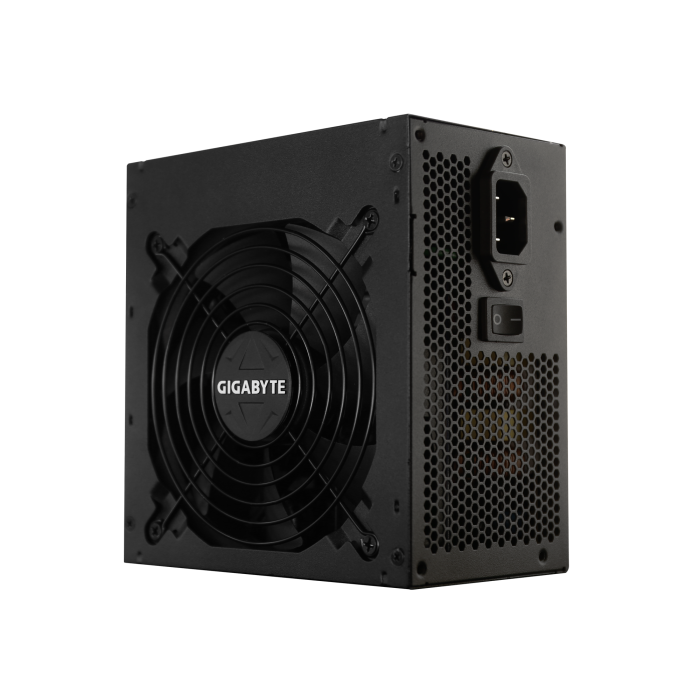

PB500
PB500
- 型號: PB500
- ATX 版本: Intel Form Factor ATX 12V v2.31
- 功率校正 (PFC): Active PFC(>0.9 typical)
- 輸入電壓: 100-240 Vac(full range)
- 輸入電流: 8A Max
- 輸入頻率: 50-60Hz
- 額定功率: 500W
- 尺寸: 150x140x86mm
- 風扇: 120mm Hydraulic Bearing(HYB)Fan
- 轉換效率: 86% at typical load
- 平均故障間隔 (MTBF): >100,000 hours
- 保護機制: OVP/OPP/SCP/UVP/OCP/OTP
- Regulatory: CE/CCC/BSMI/KCC/EAC/UL/TUV/RCM/FCC
- 電源接頭: ATX/MB 20+4 Pin x 1 (600mm) | CPU/EPS 4+4 Pin x 1(600mm) | PCI-e 6+2 Pin x 2 (500mm+150mm) | SATA x 4 (500mm+150mm+150mm+150mm) | 4 Pin Peripheral x 3 & 4 Pin Floppy x 1 | (500mm+150mm+150mm+150mm)
- 型號: PB500
- ATX 版本: Intel Form Factor ATX 12V v2.31
- 功率校正 (PFC): Active PFC(>0.9 typical)
- 輸入電壓: 100-240 Vac(full range)
- 輸入電流: 8A Max
- 輸入頻率: 50-60Hz
- 額定功率: 500W
- 尺寸: 150x140x86mm
- 風扇: 120mm Hydraulic Bearing(HYB)Fan
- 轉換效率: 86% at typical load
- 平均故障間隔 (MTBF): >100,000 hours
- 保護機制: OVP/OPP/SCP/UVP/OCP/OTP
- Regulatory: CE/CCC/BSMI/KCC/EAC/UL/TUV/RCM/FCC
- 電源接頭: ATX/MB 20+4 Pin x 1 (600mm) | CPU/EPS 4+4 Pin x 1(600mm) | PCI-e 6+2 Pin x 2 (500mm+150mm) | SATA x 4 (500mm+150mm+150mm+150mm) | 4 Pin Peripheral x 3 & 4 Pin Floppy x 1 | (500mm+150mm+150mm+150mm)
